AJA Video Ki Pro Quad Solid State 4K Solid State Video Recorder, 2 SSD Slots
What's Included With This Item:
- AJA Ki Pro Quad Solid State 4K Solid State Recorder
- Power Supply
- AJA Warranty

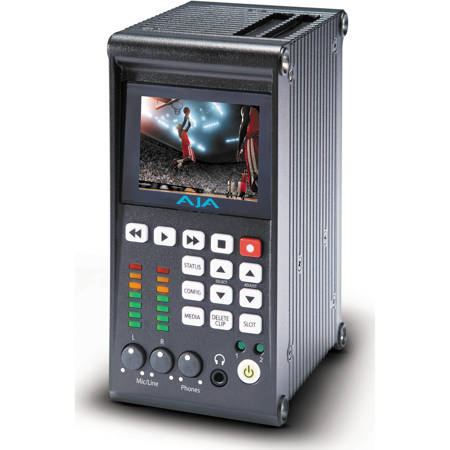

The AJA Ki Pro Quad 4K Solid State Recorder ingests raw footage from a camera and performs up to all three of the following functions simultaneously like stores the footage to an SSD, transfers the footage to a RAID or Thunderbolt-enabled computer and outputs the footage to up to two displays for monitoring.
Footage can be captured RAW and in 4K, Quad HD, 2K and HD resolutions. Captured RAW, it can be transferred RAW to a RAID or computer. Color depth supported is 10-bit 4:4:4 and 10-bit 4:2:2. In cases of storing to an SSD, the Ki Pro Quad can record in 4K, 2K and HD ProRes formats, which are friendly to Final Cut, Premiere and Avid. Two SSD slots are available.
A diverse set of connections includes SDI, HDMI, balanced audio, Thunderbolt and Ethernet. A 4-pin XLR port is also available on the bottom of the device. For monitoring, a 4K display and an HD display can be connected by dedicated SDI and HDMI monitor connectors.
The Ki Pro Quad also usefully features a playback-capable display monitor that would allow you to see what you're recording.
|Capture Resolutions||4K (4096 x 2160)
Quad HD (3840 x 2160)
2K (2048 x 1080)
HD (1920 x 1080)
|Recording Formats||4K, 2K, or HD ProRes|
|Color Support||10-bit 4:4:4 and 10-bit 4:2:2|
|Connections||SDI inputs x4
SDI outputs x4
HDMI monitor x1
LTC input x1 BNC
Ref input x1 BNC
Mic Line x2 (left / right)
-pin XLR x1
|Monitoring||4K and scaled/cropped HD monitoring on up to two displays via dedicated SDI / HDMI connectors|
|Media Card Slots||2 SSD slots|
