AJA Video

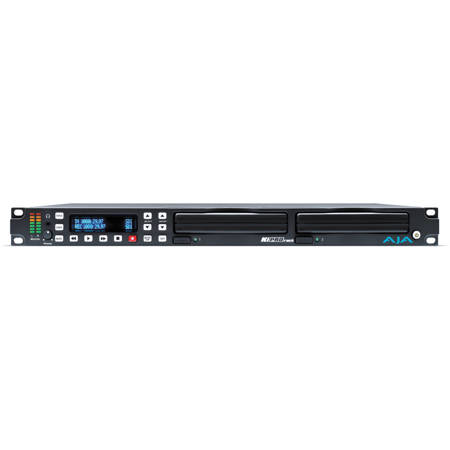

AJA Ki Pro Rack Digital File Recorder with Apple ProRes 422

SKU: AJKIPRORACK MFR: KI PRO RACK
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,995.00
Free Shipping
Qty:

Add to Wishlist

About the AJA Video KIPRORACK

The AJA Ki Pro Rack has video facilities transitioning from tape to file-based workflows for recording and playback. Ki Pro Rack offers high-quality, 'ready-to-edit' file capture, designed to get material from source to editorial as quickly as possible. With a wealth of professional connections, Ki Pro Rack will fit right into your existing cabling and routing system and record 10-bit Apple ProRes and Avid DNxHD files direct to removable hard disk or SSD Storage Modules, eliminating the need for time-consuming logging and capturing. The files can be used in most editing systems without the need for additional transcoding or importing processes.

AJA Video KIPRORACK Features

  • 10-bit, full raster recording: Big on quality - but not on file size. Recording 10-bit, full raster files, Ki Pro Rack gives you high quality images that easily stand up to post processing requirements - and client scrutiny
  • RS-422 Control: Ki Pro Rack features RS-422 control, enabling it to be easily integrated with editing systems, external controllers and even other tape decks and fulfill all the functions of a traditional VTR
  • Familiar controls and operation: Anyone familiar with the operation of a tape deck will feel immediately at home with Ki Pro Rack. Just like a traditional tape deck, Ki Pro Rack features straightforward dedicated Record, Play, Rewind and Fast-forward
  • Professional connections: The video and audio connections on the back of the Ki Pro Rack are the same type as found on traditional tape decks, allowing Ki Pro Rack to fit right into your current cabling and routing
  • Dual media drives: The twin media drive bays on the Ki Pro Rack allow extremely fast media changes - you can switch drives and start recording straight away, without having to wait to eject the first one
  • Ethernet file transfer: Because of its network connectivity, media can be copied to and from the Ki Pro Rack over the Ethernet connection. This allows for fast file transfers without the need to physically remove the media from the Ki Pro Rack
  • Integrated AJA hardware conversion: Ki Pro Rack has AJA's industry-leading conversion technology built in so you can perform high-quality up/down/cross conversion during recording or playback without having to use a second device
  • Remote configuration & control: Ki Pro Rack can be connected to your data network & accessed via a web browser from any network computer. This remote access means you can control and configure Ki Pro Rack without having to be physically in front of the unit, perfect for managing large installations

AJA Video KIPRORACK Specifications

Video Input Digital:1 Channel, selectable input SD and HD-SDI (2xBNC), SMPTE-259/292/296 HDMI
Analog: SD/HD Component (3xBNCS): SMPTE/EBU N10, Betacam 525 line, Betacam 525J, YPbPr 12-bit A/D, 2x oversampling
Video Output Digital:
SD and HD-SDI, SMPTE-259/292/296 (1xBNC)
HDMI
Analog:
Composite (1xBNC):
NTSC, NTSCJ, PAL 12-bit D/A, 8x oversampling
SD/HD Component (3xBNCs):
SD: SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
12-bit D/A, 8x oversampling HD: YPbPr, RGB
12-bit D/A, 2x oversampling
Audio Input Digital:
AES 24-bit, 8 channel, 48kHz (4xBNC) 24-bit SDI embedded audio, 8 channel, 48kHz HDMI embedded, 2 channel
Analog:
24-bit A/D, 2 channel balanced (2 XLR), 48kHz
Input level: Line
Audio Output Digital:
AES 24-bit, 8 channel, 48kHz (4xBNC) 24-bit SDI embedded audio, 8 channel, 48kHz HDMI embedded, 2 channel
Analog:
24-bit D/A, 2 channel balanced XLR, 48kHz
Network 10/100/1000 Ethernet (RJ45)
Embedded web server for remote control
Panel User Interface 2 x 20 character display, with dedicated buttons
Timecode LTC timecode input and output via BNC SDI embedded RP188 timecode On-screen timecode display on SDI 2 output
Serial Port RS-422 (slave pinout), 9-pin (available beginning with version 2.0 firmware)
Connector pinout is as follows:
1 GND
2 TX -
3 RX +
4 GND
5 No Connection
6 GND
7 TX +
8 RX -
9 GND
Shell GND
Hardware up conversion - 10-bit Anamorphic: full-screen
Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
Zoom Letterbox: image zoomed to fill screen
Zoom Wide: combination of zoom and horizontal stretch to fill 16:9 screen; this setting can introduce a small aspect ratio change
Hardware down conversion - 10-bit Anamorphic: full-screen
Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
Crop: image is cropped to fit new screen size
Hardware cross conversion - 10-bit 1080i to 720P
720P to 1080i
Storage Module drive bays 2 (each with eject button and select LED)
Temperature Operating Temperature Range: 5Deg.C to 40Deg.C
Safe Storage Temperature Range (power OFF): -20Deg.C to 60Deg.C
Power Voltage: 100-240 VAC
Typical operating power: 40W
Dimensions (H x W x D) 1.75" x 19" x 12.5" / 4.45 x 48.26 x 37.75 cm
