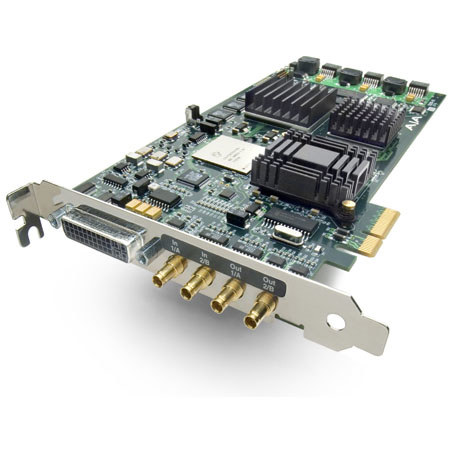

AJA Kona 3 Uncompressed Dual Link HD PCI-e Capture Card
AJA Video

AJA KONA 3 Uncompressed Dual Link HD-SDI/SDI/HD-SDI PCi-E Capture Card

SKU: AJKONA3 MFR: KONA3
What's Included
What's Included With This Item:
  • AJA KONA 3 Uncompressed Dual Link PCi-E Capture Card
  • Software and Documentation CD-ROM
  • AV Breakout Cables
  • Read Me First Notice
  • Registration Sheet
  • AJA Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

$1,699.00 Regular Price
- $100.00 Instant Rebate
Your Final Price $1,599.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The AJA KONA 3, the new heavyweight champion capture card for uncompressed SD, HD and Dual Link HD on OSX. Visualize uncompressed video, 8-channel AES and embedded audio, up/down HD/SD format conversion, hardware downstream keyer and HD/SD component analog output-all yours on a state-of-the-art 4-lane PCI Express card.

Intrigued? Like other members of the KONA family, KONA 3 is designed for no-holds-barred design and editing-with support for Apple Final Cut Studio-plus hardware acceleration for the DVCPROHD and HDV codecs and Dynamic RT Extreme effects in Final Cut Pro 5. KONA 3, the new standard bearer for quality, flexibility and future-safe architecture in a QuickTime I/O card.

What's Included With This Item

  • AJA KONA 3 Uncompressed Dual Link PCi-E Capture Card
  • Software and Documentation CD-ROM
  • AV Breakout Cables
  • Read Me First Notice
  • Registration Sheet
  • AJA Warranty

Key Features

  • Vroom: KONA 3's 4-Lane PCI-Express bus interface with the integrated AJA QuickTime drivers team up perfectly with the new Apple PowerMacs to give you unparalleled power and efficiency within Final Cut Pro.
  • Supports any uncompressed SD or HD format, including Dual Link, KONA 3 captures and plays back uncompressed 10-bit and 8-bit digital video and 24-bit 48kHz digital audio in standard definition (SMPTE 259M), high definition (SMPTE 292M) and Dual Link high definition (SMPTE 372M).
  • KONA 3 also includes a variety of 10-bit broadcast-quality features, such as hardware-based up-and-down-conversion to and from HD-and adds a live hardware keyer for compositing bugs, live video and other elements over your video.
  • Dual-Link: KONA 3 supports Dual-Link 4:4:4 HD-SDI, a new technology on the Macintosh platform. Commonly known as Sony HDCAM SR or Thompson Viper Format, KONA 3 Dual-Link supports full bandwidth 4:4:4 RGB at 10-bits (12-bit capable) for 1080i, 1080p and 720p formats.
  • KONA 3 can also convert between 4:4:4 and 4:2:2 formats for single link HD-SDI output.
  • Broadcast-Quality Conversion: KONA 3 features full 10-bit, broadcast-quality, motion-adaptive SD to HD up-conversion, HD to SD down-conversion and automatic HD/SD 12-bit component analog output.
  • Internal HD/SD Live Hardware Keyer: Available for the first time on any QuickTime capture card is a powerful hardware keyer that can place graphic files with an alpha channel over video in, a selectable matte, or the contents of the card's framebuffer (KONA TV/Final Cut Pro).
  • Audio: KONA 3's extensive audio support makes installation a breeze, working with 8-channel 24-bit 48kHz AES audio via XLR (balanced) connections and 8-channel embedded 24-bit 48kHz embedded SDI/HD-SDI audio.
  • KONA 3 also features high-quality input sample rate conversion on AES inputs, which eliminates the need for audio source synchronization. If you're using a digital Betacam deck, HDCAM, DVCPRO HD, D5, D9, or even an HDCAM SR, you'll have the proper connections.
  • Flexible I/O: KONA 3 boasts two HD/SD SDI video inputs and outputs and a component analog output, each independently switchable between HD and SD (SD analog can be configured as composite).

Technical Specs

Type SDI, HD-SDI, Dual Link HD-SDI 4:4:4 and 4:4:4:4 capture/output card
Compatible with Final Cut Pro 5
Adobe After Effects
Adobe Photoshop
Apple Motion
Apple Shake
Discreet Combustion
Video System NTSC & PAL
Video System SD 720x576 @25fps PAL
720x486 @29.97fps NTSC
Video System HD 720p @50fps
720p @59.94fps
720p @60fps
1080i @25fps
1080i @29.97fps
1080i @50fps
1080psf @23.98fps
1080psf @24fps
1080p @50fps
1080p @59.94fps
1080p @60fps
Video Formats HD-SDI/SDI, SMPTE-259/292/296
Dual-link HD 4:4:4, 4:4:4:4
12-bit HD/SD Uncompressed Analog YUV
Audio Formats 24-bit, 48kHz
Host Connection PCI-Express x4 slot
Input & Output Connectors Video Digital 2 x BNC HD/SD-SDI, in (Single/Dual-Link)
2 x BNC HD/SD-SDI, out (Single/Dual-Link)
Input & Output Connectors Video Analog 3 x BNC YUV/Composite, out
Input & Output Connectors Audio Digital 4 x XLR AES/EBU, in (1-8 Ch.)
4 x XLR AES/EBU, out (1-8 Ch.)
8-Ch. HD/SD-SDI embedded audio, I/O
Input & Output Connectors Deck Control 1 x 9-pin RS-422
Input & Output Connectors Genlock 1 x BNC Genlock, in
Real-Time Output Yes
Real-Time Layers Application Dependent
Hardware Real-Time Effects DVCProHD hardware acceleration
HDV hardware acceleration
FCP 5 Dynamic RT Extreme hardware acceleration
Downstream Keyer Will output graphics with alpha channel over video, matte or framebuffer, or framebuffer content over video or matte
Hardware Conversion 10-bit, broadcast quality, SD to HD up-conversion, HD to SD down-conversion
WYSIWYG Support Yes
Warranty AJA warranty
