| Type |

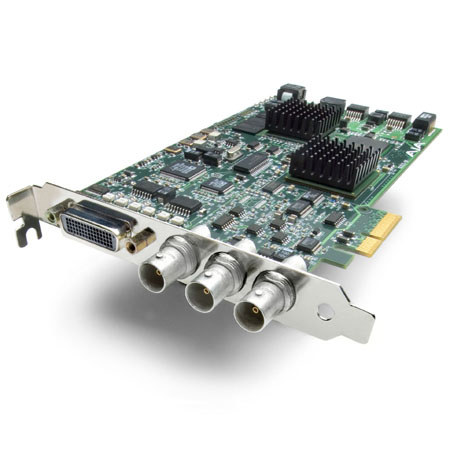

10/12-bit Uncompressed SD/HD QuickTime Capture/Output Card |
| Compatible with |
Final Cut Pro 5 Motion After Effects Combustion |
| Video System |
NTSC, PAL |
| Video Formats |
10-bit HD-SDI/SDI, SMPTE-259/292/296 12-bit HD/SD Uncompressed Analog YUV |
| Video Formats SD |
720x576 @25fps PAL 720x486 @29.97fps NTSC |
| Video Formats HD |
720p @50fps 720p @59.94fps 720p @60fps 1080i @25fps 1080i @29.97fps 1080i @50fps 1080psf @23.98fps 1080psf @24fps 1080p @50fps 1080p @59.94fps 1080p @60fps |
| Audio Formats Digital |
24-bit, 48KHz - AES/EBU 24-bit SMPTE-259 SDI embedded audio |
| Audio Formats Analog |
24-bit, 48KHz |
| Host Connection |
x4 PCI-Express slot |
| Input & Output Connectors Video Digital |
1 x BNC HD/SD-SDI, in 2 x BNC HD/SD-SDI, out |
| Input & Output Connectors Video Analog |
3 x BNC YUV/Y/C/Composite, in 3 x BNC YUV/Y/C/Composite, out |
| Input & Output Connectors Audio Digital |
1 x XLR AES/EBU, in (1 & 2 Ch.) 1 x XLR AES/EBU, out (1 & 2 Ch.) 8-Ch. HD/SD-SDI embedded audio, I/O |
| Input & Output Connectors Audio Analog |
2 x XLR Balanced, in (1 & 2 Ch.) 2 x XLR Balanced, out (1 & 2 Ch.) |
| Input and Output Connectors Deck Control |
1 x 9-pin RS-422 |
| Input and Output Connectors Genlock |
1 x BNC HD/SD Genlock, in |
| Real-Time Output |
Yes |
| Real-Time Layers |
16 |
| Hardware Real-Time Effects |
Yes |
| WYSIWYG Support |
Yes |
| System Requirements: Minimum |
Apple OSX 10.3.9 or OSX 10.4.x Tiger Macintosh G5 dual 2GHz processors (PCIe bus is required) 1GB RAM One or more internal SATA drives |
| System Requirements: Recommended |
Apple OSX 10.3.9 or OSX 10.4.x Tiger Macintosh G5 dual 2.5 GHz processors (PCIe bus is required) 1GB RAM A Fiber Channel or SCSI external RAID for uncompressed SD/HD storage |
| Warranty |
AJA warranty |
