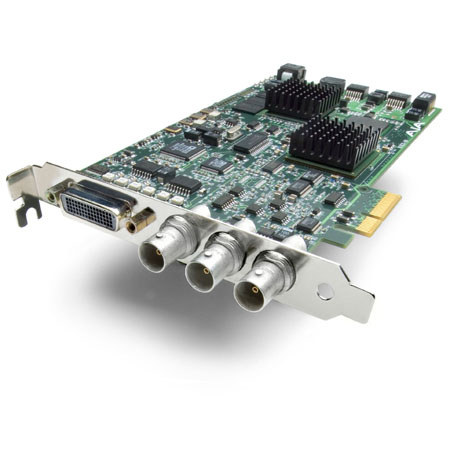

AJA Kona LSe SDI/Component/Composite PCI Card
See all AJA items

AJA KONA LSe 12-Bit SDI/Component/Composite/S-Video/AES-EBU PCi Card

SKU: AJKONALSE
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
AJA 3G-SDI 4-Channel Analog Balanced Audio Embedder/Disembedder Mini-Converter
$1,118.00
undefined undefined: Picture 1 regular
AJA 3G-AM 8-Channel AES Embedder/Disembedder with BNC Breakout Cable
$1,118.00
undefined undefined: Picture 1 regular
AJA 3G-AM 8-Channel AES Embedder/Disembedder with XLR Breakout Cable
$1,118.00
undefined undefined: Picture 1 regular
AJA 12G-AMA 12G-SDI 4-Ch Balanced Audio Embedder/Disembedder Mini-Converter
$1,399.00
undefined undefined: Picture 1 regular
AJA 12G-AMA-R 12G-SDI 4-Ch Audio Embedder/Disembedder Converter, LC Fiber Rx
$1,842.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

AJA AJA KONA Lse Specifications

  • Type

    PCIe based QuickTime audio/video interface for high quality Standard Definition video.

  • Compatible with

    Apple Final Cut Pro
    Apple Shake
    Adobe After Effect
    sAdobe Photoshop
    Discreet Combustion

  • Video System

    NTSC, PAL

  • Video Formats Digital

    Native SD-SDI 10-bit uncompressed
    DV/DVCAM
    DVCPRO(25/50)

  • Video Formats Analog

    Composite/S-Video/Component
    12-bit uncompressed

  • Frame Rates

    SD NTSC, 720x486 (29.97 fps)

  • Audio Formats

    24-bit, 48 kHz

  • Host Connection

    PCI Express

  • Input & Output Connectors Video Digital

    1 x BNC, SDI input
    2 x BNC, SDI output
    1 x BNC, Reference Input

  • Input & Output Connectors Video Analog

    3 x BNC, Component/Composite/S Video Input
    3 x BNC, Component/Composite/S Video Output

  • Input & Output Connectors Device Control

    9-pin RS-422 (On the KONA LS board)

  • Input & Output Connectors Audio Digital

    6-Ch SDI embedded audio support
    1 x XLR, AES In
    1 x XLR, AES Out

  • Input & Output Connectors Audio Anolog

    2 x XLR, Balanced In
    2 x XLR, Balanced Out

  • Hardware Real-Time Effects

    Cross Dissolve
    Additive Dissolve
    Fade In, Fade Out
    Dip to Color
    Non-Additive Dissolve

  • System Requirements Computer

    Dual Power Mac G5 2 GHz (Dual 2.3 GHz recommended)

  • Memory

    1 GB

  • Hardware

    Available PCI Express slot

  • Warranty

    AJA warranty

About AJA AJA KONA Lse

The AJA KONA LSe 12-Bit PCIe Capture Card for Mac from AJA is an excellent choice for your SD capture needs for Mac. The card supports analog S-Video, component and composite video connections as well as standard definition SDI digital video connections. In addition to support for 12-bit uncompressed video, the card delivers broadcast-quality video capture and output. The card is designed for use on the Macintosh platform, making it an excellent choice for Final Cut Pro users.

AJA AJA KONA Lse Features

  • KONA I/O Options: The KONA LSe's analog interfaces are among the best in the industry. Using superb quality 12-bit video A/D and D/A converters, analog formats like BetaCam SP have never looked better.
  • Audio Features: The card supports balanced analog, AES/EBU and embedded audio I/O all at 24-bits and 48 kHz. For simplified system integration, the KONA LSe also includes hardware sample-rate conversion for AES inputs.
  • KONA LSe Desktop: In addition to Final Cut Pro support, the KONA LSe Desktop feature allows broadcast design elements to be viewed in a proper aspect ratio and color depth on a broadcast monitor via the KONA LSe card.
  • Software Support: QuickTime drivers that have been optimized for the KONA LSe by AJA are included with the card. Additionally, the KONA control panel simplifies A/V control and also supports a stand-alone mode.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AJA KONA LSe 12-Bit PCIe Capture Card
  • Software CD-ROM
  • Breakout Cable
  • AJA Warranty
