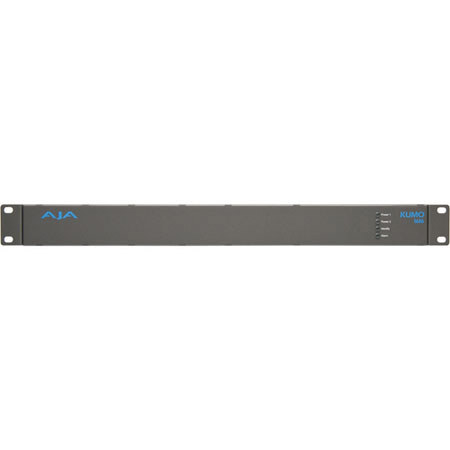

AJA Kumo 16x4 Compact SDI Routers with SD, HD, 3G SDI Inputs and Outputs Via BNC, SMPTE 259M/292M/424M, Automatic EQ and Re-Clocking

AJA
SKU: AJKUMO1604 MFR: KUMO1604
AJA AJA Kumo 16x4 SDI Routers: Picture 1 thumbnail AJA AJA Kumo 16x4 SDI Routers: Picture 2 thumbnail
Free Shipping

See all shipping options

In Stock Online Usually ships within 1-2 Days learn more

Made in USA

Our Price

$1,395.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About AJA AJA Kumo 16x4 SDI Routers

KUMO compact SDI routers are small and cost-effective, yet robust and reliable. KUMO supports full broadcast specifications over SDI, HD-SDI and 3G SDI. KUMO routers are a perfect fit for any broadcast, production, or post production environment. Running Embedded Linux, KUMO routers are network ready and support powerful HTTP control and monitoring. KUMO's internal webserver allows immediate installation, configuration and operation with standard web browsers - without any additional software to buy or install. An optional 1RU networkable control panel (KUMO CP) can be used in stand-alone or networked configurations.

KUMO SDI routers are available in two configurations: the KUMO 1604 supporting sixteen SDI inputs and four outputs and the KUMO 1616 supporting sixteen channels in and out. Because of their compact 1RU size, KUMO SDI routers are ideal for space-sensitive applications such as mobile sports trucks, edit suites, corporate video installations, or live theatrical A/V rigs. KUMO compact SDI routers offer AJA-reliability, flexibility and state-of-the-art signal quality, while delivering it for an unprecedented price.

AJA AJA Kumo 16x4 SDI Routers Features

  • SD, HD, 3G SDI inputs and outputs via BNC, SMPTE 259M/292M/424M
  • Automatic EQ and re-clocking
  • Supports all ancillary data, including embedded audio
  • Reference via BNC, passive loop, PAL/NTSC color black or HD tri-sync
  • 10/100/1000 Ethernet LAN
  • Auto-detect Bonjour/Zeroconf protocol provides ease of installation
  • Embedded Linux OS with internal webserver for web browser control
  • Control from HTTP or Remote Control Panel (KUMO CP is optional)
  • 1RU form factor
  • Redundant power inputs (isolated)
  • 1 Power supply and line cord supplied
  • Optional power supply available

AJA AJA Kumo 16x4 SDI Routers Specifications

Formats
3Gb, 1.5Gb, 270Mb, ASI, Auto Select
Video Inputs and Outputs
SDI (SMPTE 259/292/296/424), BNC
Cable Equalization(BNC inputs,1694 coax)
270Mb: 400m/1.5Gb: 200m/3Gb: 140m
Input/Output Return Loss (BNC)
>15db, 270Mb - 1.5Gb / >10db, 1.5Gb - 3Gb
Reference Input
Analog input, passive looping BNCs / Format: NTSC, PAL, Tri-level sync
Control
10/100/1000 Ethernet, RJ-45, internal Linux OS/web server RS-422 (future enhancement)
Environment
Operating Temperature: 0 to 40 Degrees C / Relative Humidity: 0 to 90%, non-condensing
Power
+12 VDC nominal, 9-18VDC range, optional redundant power / KUMO 1604: 9 watts / KUMO 1616: 20 watts / KUMO CP: 5 watts
Size
KUMO 1604, 1616: 19" width x 1.75" height, x 1.5"" depth (483 x 44.5 x 38.1 mm)
KUMO RCP: 19" width x 1.75" height, x 1.3" depth (483 x 44.5 x 33 mm)
Weight
KUMO 1616: 1.4 lb (.64 kg) / KUMO 1604: 1.2 lb (.55 kg) / KUMO CP: 1.2 lb (.55 kg)
