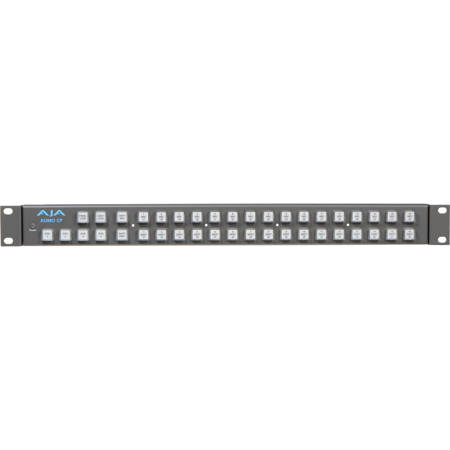

About the AJA Video AJA KUMO-CP 1RU

The KUMO CP Control Panel is a destination-oriented panel allowing selection of 16 sources to 16 destinations on each of up to four KUMO routers. The control panel will connect to a single KUMO router (straight Cat 5 connection) automatically without computer/browser interface. For connection to up to four routers at a time, use the KUMO browser interface to assign the router select buttons to any four KUMO routers on your network.

AJA Video AJA KUMO-CP 1RU Features

  • Connectors and Indicator: KUMO CP provides inputs for two power supplies-one included, redundant supply optional. An RJ-45 connector provides 10/100/1000 Ethernet connection to the internal Linux OS/web server
  • Panel Lock - Prevents Source or Destination changes from this panel
  • Destination Lock - Prevents any Source change for a Destination
  • Router Delegation Buttons - Enable immediate control of the KUMO assigned to the button
  • Adjust the Display Intensity slider - Select one of four button illumination levels
  • Reset "Auto Configure" - Resets the Auto Configure function to automatically set up one control panel to one router. This function re-boots the panel to trigger the configuration. Upon reboot, if any other router is found on the network, it will not pair to the panel
  • Reset to Factory Defaults - Resets all user settings to factory defaults

AJA Video AJA KUMO-CP 1RU Specifications

Control 10/100/1000 Ethernet, RJ-45, internal Linux OS/web server
Environment: Operating Temperature Operating Temperature 0 to 40 Degrees C
Environment: Relative Humidity 0 to 90%, non-condensing
Power 4 Watts
Dimensions (D x H x W) 1.07" x 1.72" x 19" / 27.3 x 43.7 x 483 mm
Weight 1.2 lbs / 0.55 kg
