AJA R10CE 1x4 SDI DA & 10-Bit Component/Composite Analog Converter

SKU: AJR10CE MFR: R10CE
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • SDI Input, SMPTE 259M
  • Automatic NTSC/PAL selection
  • 10-bit
  • PLL Jitter Filter
  • Built-in Test Pattern
  • Configurable pedestal and narrow/wide H/V blanking
  • Converts From Component
  • Converts From Composite

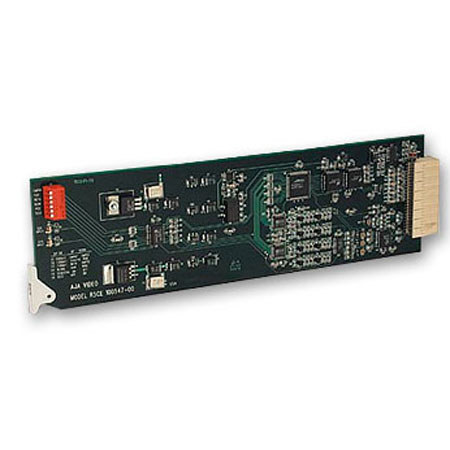

AJA R10CE: Picture 1 regular

About AJA R10CE

The AJA R10CE SDI monitoring distribution amplifier provides four equalized, reclocked and separately buffered serial digital outputs, plus four analog monitoring outputs. One analog output is NTSC/PAL. The other three analog outputs are configurable to a wide variety of formats, including composite, composite and Y/C (S Video), or component -including SMPTE/N10 (YUV), RGB and true Betacam levels.

In operation, the R10CE automatically configures to 525 or 625 line component digital inputs and then outputs analog NTSC (525, line input), PAL (625 line input)and component analog as determined by DIP switch settings. A PLL jitter filter/memory reduces the effects of SDI jitter on the analog outputs.

The R10CE encodes the full dynamic range of input component video-values below black and above white are not clipped. In the NTSC mode, the 7.5 IRE pedestal can be disabled by an external DIP switch selection. The R10CE also features a PLL filter, which reduces SDI input jitter for stable composite or component analog outputs.

AJA R10CE Features

  • SDI Input, SMPTE 259M
  • Four equalized and re-clocked copies of the SDI input (SMPTE 259M) as outputs
  • Four analog outputs (configurable as 4 composite, or 1 composite and R/G/B, Y/Pb/Pr, or Y/C)
  • Y/Pb/Pr selectable for SMPTE/EBU levels or Betacam levels (Y, R-Y, B-Y)
  • Automatic NTSC/PAL selection
  • 10-bit
  • PLL Jitter Filter
  • Built-in Test Pattern
  • Configurable pedestal and narrow/wide H/V blanking
  • Frame Sync/Genlock option with reference input and full timing adjustment~
  • Locks composite output Color Framing sequence to external reference without Frame Sync/Genlock option
  • Plug compatible with several other manufacturers' video frames
  • Compatible with Leitch 6800 Series Frames

AJA R10CE Specifications

Inputs
SDI (SMPTE 259M), 1x BNC
Outputs
SDI (SMPTE 259M), 4 x BNC
NTSC/PAL Analog, 1 x BNC
YPbPr - SMPTE, EBU-N10, Betacam
RGB, or 3 x NTSC/PAL,
or 1 NTSC/PAL and Y/C (S Video) 3 x BNC
All outputs are separately buffered
Serial Output
Equalized, Re-clocked
Jitter Filtering
Up to 2.5 Hz
Frequency Response
+/-.25db to 5Mhz frequency response (Y)
2T K factor
<1% (Y)
Diff. Gain
<1.5%
Diff. Phase
<1.5 degree
Output level adjustment: (internal)
+/-20% (internal)
Power Consumption:
+6.5 Volts/8.5 Watts, -6.5 Volts/0 Watts
Warranty
AJA 5 years parts & labor warranty
Mfr #
R10CE
SKU
AJR10CE
