AJA Video

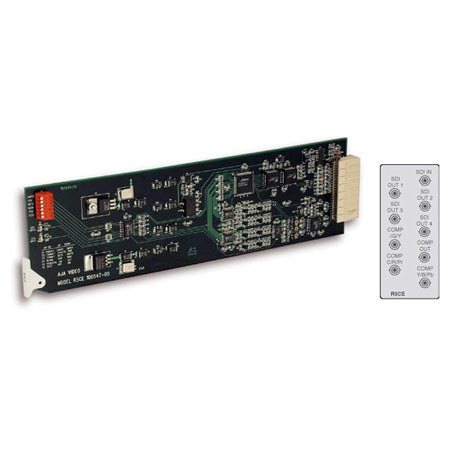

AJA Video 1x4 SDI Distribution Amplifier and 8-Bit SDI to Component or Composite Analog Converter

SKU: AJR5CE MFR: R5CE
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

529.00 $21 per week
Free Shipping
Qty:
Add to Wishlist

About this item

The R5CE SDI to Analog Video Converter (Decoder) from AJA is a Digital to Analog converter and offers multiple SDI outputs for Distribution Amplifier capabilities. It will convert SDI digital video to a variety of analog formats.

Key Features

  • SDI DA: This rack frame unit offers four SDI outputs allowing it to operate as a 1x4 distribution amplifier
  • Digital-to-Analog Conversion: The SDI input converts to output component, Y/C, or composite analog video
  • Jitter Filter: A PLL jitter filter reduces the effects of SDI jitter on the analog conversion
  • Test Pattern: A built in test pattern offers set up signals for the user
  • Dither Filter: A 10- to 8-bit dithering circuit removes contouring in the analog outputs
  • Multi-Standard: The analog outputs can be configured to NTSC or PAL television standards
  • Rack Frame: This device fits in an optional rack frame that offers the required rack mounting and power

Technical Specs

Input SDI x 1, SMPTE 259M, on a BNC connector
Output SDI x 4, SMPTE 259M, on four BNC connectors, Composite x 1, NTSC or PAL, on a BNC connector, Y/C video x 1, NTSC or PAL, on two BNC connectors, Component video x 1, NTSC or PAL, on three BNC connectors
Conversion SDI digital video to composite, Y/C and component analog video
Control: Dip Switches Pedestal, H & V Blanking, NTSC or PAL, Test Pattern
Power Source 6W consumption derived from rack frame
Dimensions Designed to fit into AJA R-Series and Leitch 6800 rack frames
