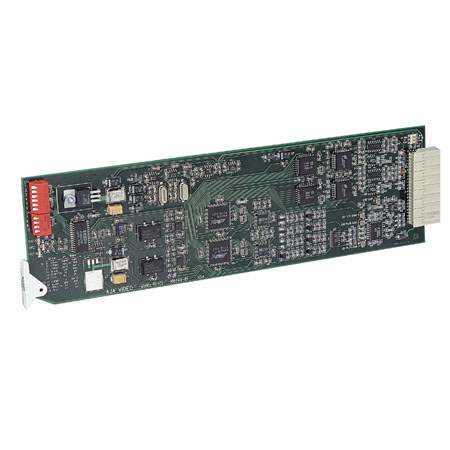

AJA Two Channel SDI to Analog Video Converter
AJA Video

AJA Two Channel SDI to Analog Video Converter (Decoder), Channel One to Component / Composite, Channel Two to Composite

SKU: AJRD5CE MFR: RD5CE
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$1,200.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The RD5CE is a dual channel Digital to Analog conversion device, it accepts SDI digital video and outputs component analog video on channel one and composite video on channel two. This rack frame design offers looping inputs and external reference access.

Key Features

  • Dual Channel: Each channel of conversion operates separately, therefore can be configured for different applications
  • Multi-Standard: This device is able to convert to NTSC or PAL signals
  • PCB: The RD5AD comes in a printed circuit board design to accommodate situations where multiple conversion takes place in a small studio area. Multiple PCB's can be mounted in a single R-Series rack frame

Technical Specs

Input: SDI Video x2 Looping, SMPTE 259M, Separate channels, on two BNC connectors
Output: Composite Video x2 Separate channels, on two BNC connectors
Output: Component Video Channel one only, RGB or YUV, on BNC connectors
Output: External Reference On a BNC connector, All NTSC or PAL
Conversion SDI digital video to Component or Composite video on channel one, SDI digital video to Composite video on channel two
Control: Dip Switches Video Format, Pedestal, H and V Blanking
Power Source 7.5 Watts from R-Series Frames
Dimensions (W x D x H) Designed to fit in R-Series frames
Weight Less than 1 lb
