AKG C 520 Head-Worn Cardioid Condenser Micropho...
AKG Acoustics

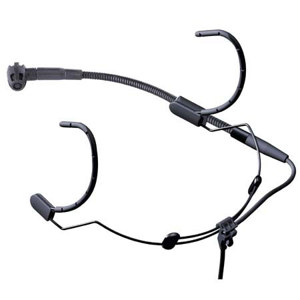

AKG C 520 Head-Worn Cardioid Condenser Microphone for Lead and Backing Vocals

SKU: AKC520 MFR: 3066X00010
What's Included
What's Included With This Item:
  • AKG A 400 Adapter
  • W 44 Windscreen
  • AKG 2 Year Parts & Labor Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$199.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The AKG C 520 is a head-worn condenser microphone with maximum dynamic range for perfect vocal sound. Its cardioid polar pattern effectively rejects unwanted ambient noise. An ideal choice for frontmen, singing keyboardists, drummers, guitarists and dancers. The microphone arm mounts either on the left or right side of the headband as desired.

The C 520 provides the perfect solution for any performer needing a handsfree microphone. A transducer shock mount reduces handling noise to a minimum. The moisture shield prevents perspiration from penetrating into the transducer element, ensuring a high degree of humidity protection for the microphone. The C 520 is for external phantom powering.

What's Included With This Item

  • AKG A 400 Adapter
  • W 44 Windscreen
  • AKG 2 Year Parts & Labor Warranty

Key Features

  • Head-worn microphone with continuously adjustable behind-the-neck headband
  • External shock mount for high mechanical-noise rejection
  • Miniature gooseneck for precise positioning near the user's mouth
  • Microphone arm provides choice of left or right-hand use

Technical Specs

Polar pattern Cardioid
Frequency range 60 Hz to 20 kHz
Sensitivity 5 mV/Pa (-46 dBV)
Max. SPL 130 dB/132 dB (for THD = 1 %/3 %)
Equivalent noise level 31 dB-A
Signal/noise ratio (A-weighted) 63 dB
Impedance <= 200 ohms
Recommended load impedance >= 2000 ohms
Power requirement 9 to 52 V phantom power to DIN 45596 or battery powering from B 29 L, or AKG bodypack transmitter
Connector 3-pin male XLR
Cable 3 m (10 ft.)
Finish Matte black
Dimensions length: 195 mm (7.7 in.) (microphone only); max. diameter: 134 mm (5.3 in.)
Weight 26 g (0.9 oz.)
Warranty AKG Acoustics 2 year parts & labor warranty
