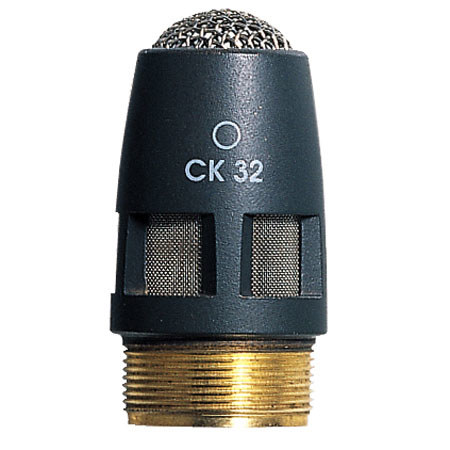

AKG Acoustics CK 32 Modular Omnidirectional Microphone Capsule for GN Series, HM 1000 and LM 3 Mic Housings

AKG Acoustics
SKU: AKCK32 MFR: 2765H00210

List Price: $109.00

Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more

Our Price

$99.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About AKG Acoustics

The AKG CK 32 Modular Omnidirectional Microphone Capsule is a modular omnidirectional microphone capsule designed for use with the AKG GN series, HM 1000 and LM 3 gooseneck, hanging and lavalier microphone fixtures. The omnidirectional polar pattern provides a generous, uniform pick up pattern at the front and off-axis sections of the capsule.

The wide frequency response of 20Hz to 20kHz minimizes low frequency noise caused by wind and proximity effect while reproducing audio signal with great accuracy and rich detail. The dual wind screen design employs an outer layer which disperses initial wind stream while the second layer further diffuses the wind stream before reaching the diaphragm. The module design allows quick and easy capsule replacement for added flexibility.

AKG Acoustics Features

  • Modular Design: The CK32 is designed with a threaded connection for use with the GN series, HM 1000 or LM 3 microphone fixtures. The modular design offers quick capsule replacement and enhances flexibility
  • Omnidirectional Polar Pattern: The omnidirectional polar pattern minimizes noise and ambient audio signal at the off-axis (sides) of the microphone capsule
  • Wide Frequency Response: The wide frequency response of 50Hz to 20kHz offers smooth, accurate audio reproduction while minimizing low frequency noise
  • Dual Layer Wind Protection: The dual layer windscreen provides a primary layer which disperses the incoming wind stream while the second layer further diffuses wind flow before reaching the diaphragm

AKG Acoustics Specifications

Compatibility
AKG GN Series, HM 1000 and LM 3 Mic Housings
Polar pattern
Omnidirectional
Frequency range
20 to 20,000 Hz
Sensitivity
14 mV/Pa (-37 dBV) re 1 V/Pa
Max. SPL
125 dB (for 1 % THD)
Equivalent noise level
20 dB-A (IEC 60268-4, A-weighted)
Signal/noise ratio (A-weighted)
74 dB
Impedance
<=600 ohms
Recommended load impedance
>=2,000 ohms
Powering
<3 mA
Connector
Discreet Acoustics Modular standard
Finish
Matte Dark Gray
Dimensions
0.8x0.5" (20.3x12.7mm)
Weight
5g (0.17oz.)
