AKG CK69, 2 Piece Shotgun Capsule Combo for the C480B Preamplifier Module

SKU: AKCK69

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

AKG CK69 Specifications

  • Transducer

    Condenser

  • Polar Pattern

    Hypercardioid / Directional

  • Frequency Response

    20 Hz - 18 kHz

  • Dynamic Range (Typical)

    123/129/131 dB, (A-Weighted)

  • Signal-to-Noise Ratio

    83/85/79 dB, (A-Weighted)

  • Maximum Input Sound Level

    134/140/142 dB for 0.5% THD

  • Power Requirements

    Phantom Power, 48v (to DIN 45596)

  • Output Impedance

    150 Ohms

  • Output Connectors

    Screw-On, Proprietary Connector to C480B
    C480B then Terminates to an XLR-3M Type Connector

  • Pad

    Yes, (0, +6 and -10 db Found on C480B Module)

  • Low Frequency Roll-Off

    Yes, (Switchable Low-Frequency Cuts 150 Hz and 75 Hz at 12dB, Found on C480B Module)

  • Applications

    ENG, Videograpy, Film, Stage, etc.

  • Dimensions

    6.9/12.5 x .8" (176/317 x 21mm) LxDiameter

  • Weight

    6.9" L = 2.5 oz. (70 g)
    12.5" L = 17.7 oz. (500 g)

  • Warranty

    AKG Acoustics 2 year parts & labor warranty

0 Accessories for AKG CK69, 2 Piece Shotgun Capsule Combo for the C480B Preamplifier Module

About AKG CK69

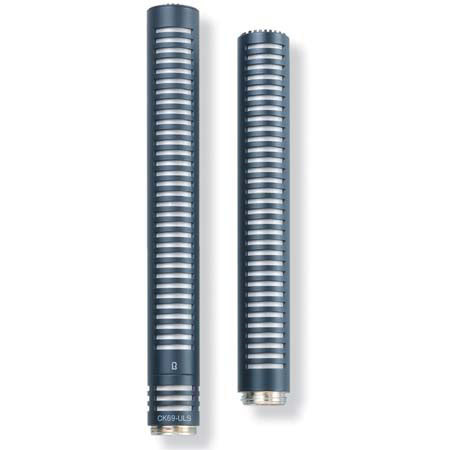

The AKG CK 69 is Optimized for use with the C480B. Two shotgun capsules in one, with quick and easy conversion from long to short shotgun applications without compromising sonic integrity. In its long shotgun configuration, the CK 69 will deliver perfect results for outdoor applications - getting sounds in sync with picture - or indoor front of stage recording/reinforcement from approximately 6 to 8 m (20 to 24 ft.).

Unscrew the front half of the interference tube and the same capsule becomes a short shotgun for use in TV, film and video close-up work. Additionally, the short shotgun mode resolves the problems associated with performing interviews in noisy environments. The CK 69 operates flawlessly in high humidity environments and windscreens are provided for both long and short configurations. Convenient, quiver-type carrying case accommodates capsules, powering module and windscreens. It includes original frequency response curves.

AKG CK69 Features

  • Dual (long and short) shotgun element for use with C480B module
  • Self Noise Floor is Less than 11 dB-A
  • Transformerless Output
  • Three Position Attenuation Switch - 0, +6 and -10 dB
  • Switchable low-frequency cuts at 150 Hz and 75 Hz at 12 dB/octave Pad and Low Cut switches are found on C480B module
  • Sleek, Black, Durable Finish
  • Crystal Clear Sound Reproduction

What's in the box:

  • AKG W48 & W49 Windscreens
  • AKG 2 Year Parts & Labor Warranty
