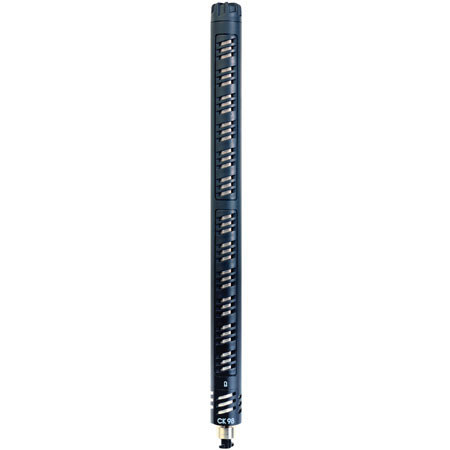

AKG Acoustcs Blue Line CK98 Short Shot Gun Capsule for use with SE300B Preamp Power Module.

Mfr. Part: 2439Z00040     SKU: AKCK98

AKG Acoustcs Blue Line CK98 Short Shot Gun Capsule for use with SE300B Preamp Power Module.
enlarge image

Free Shipping view details

Product Rating Write a Review

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.

Item Includes
CK98 Short Shot Gun Capsule - W 98 Windscreen

Description
The CK 98 combines high sensitivity and controlled directivity. It offers excellent reach, thanks to a very tight polar pattern and exceptionally low selfnoise.

Small size and low weight make the CK 98 ideal for boom applications. The smooth, wideband frequency response makes it a superb choice for edge-of-stage and ceiling placement in theaters. Includes foam windscreen.

The AKG Blue Line is a modular microphone system that answers the constantly changing needs of the motion picture, recording, radio, and sound reinforcement industries in an ingenious and economic way.

The AKG Blue Line offers a wide variety of modules that can provide tailor-made miking solutions for every conceivable application. It goes without saying that every AKG Blue Line microphone delivers studio quality audio.

The AKG Blue Line comprises the SE 300 B powering module, eight capsules, and many accessories for a multiplicity of specialized recording and live sound applications.

The ultra-low-mass diaphragm of each capsule reduces handling noise to a minimum. High resistance to RF interference and hum makes the AKG Blue Line a perfect recording and sound reinforcement tool.

Features
Short shotgun for use in noisy environments
Mounts directly on SE 300 B powering unit or connects via 10-ft. (3-m) cable
Quick-lock bayonet mount for easy connection to powering unit

Specifications
TypeShort Shot Gun Capsule
Frequency Range20 to 20,000 Hz
Polar Patternhypercardioid/directional
Sensitivity25 mV/Pa (-32 dBV)
Max. SPL Capability124/134 dB (for 1% THD)
Connectorbayonet mount
S/N Ratio(A-weighted) 77 dB
Equivalent noise level17 dB-A
CCIR 468-3: 28 dB
Patent(s)Electrode for condenser transducers (Patent no. AT 385.386, US 4.790.021)
Electrode support for condenser transducer (Patent no. AT 392.182, DE 4.021.661)
Power RequirementsSupply voltage: through SE 300 B
Current consumption: through SE 300 B
FinishDark gray
Dimensions19 dia. x 247/262 mm / 0.7 dia. x 9.7/10.3 in.
Net Weight80 g / 2.8 oz.
Shipping Weight500 g / 1.1 lb.
