AKG Acoustics WMS 450 Choir Wireless Microphone System with Band 1 Frequency Range
Mfr. Part: WMS450CHOIR10 SKU: AKWMSCHOIR1
enlarge image
|
|
 |
|
|
|
Item Includes

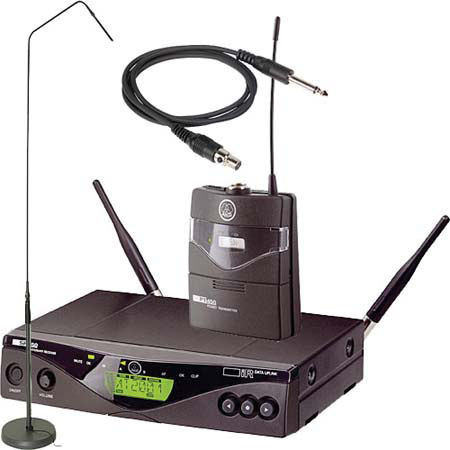

AKG Acoustics SR450 Receiver - PT450 Bodypack Transmitter - GN155C Choir Microphone and Output Stage - MK/GL Instrument Cable - 2 x UHF Receiver Antennas - Receiver Power Supply - RMU 100 Rackmount Kit - AA Alkaline Battery - Carrying Case - Manual Supplement - AKG Acoustics 2 Year Parts & Labor Warranty
|
Description
The AKG WMS 450 Choir System is a flexible wireless microphone system that offers the reliability of multi-band UHF operation, professional features and a cost effective price for use in any application. The system is delivered with the SR 450 receiver, PT450 bodypack transmitter, MK/GL instrument cable and GN155 choir stand for wireless choir capturing in halls, houses-of-worship, live performances, etc.
The SR 450 diversity receiver is your best choice for cost-efficient, high-performance multichannel systems. Up to 12 channels can be used simultaneously within the same subband and even large systems will work smoothly in environments hostile to RF transmission. Being compatible with professional WMS 4000 antenna splitters, power supplies and high quality antennas, the WMS 450 enables you to set up highly complex wireless systems. In Auto Setup mode, the receiver will scan the available bands, find an interference-free channel and transmit the related frequency data to the assigned transmitter via infrared. This technique significantly reduces the time it takes to set up a multichannel system.
A Rehearsal function identifying dead spots, a programmable display clearly indicating all important system parameters, two-color display backlighting warning the user of critical conditions from a distance and a transmitter battery status display on the receiver enhance reliability and add to ease of use. |
Features
 |
Best Sound in class |
|
Extremely compact bodypack transmitter with new rugged finish |
|
Easy configuration through Infrared data download from receiver |
|
Lowest operating costs: Up to 8 hours with ONE AA Battery |
|
Unique Battery Status Display |
|
Professional mini XLR audio input - with a wide range Input Level Control |
|
Connector for external MUTE switch |
|
Integrated Charging Contacts |
|
All metal case with rugged finish |
|
Easy set up of up to 12 channels per frequency band |
|
Programmable Status Display with Two-Color Backlight |
|
Integrated frequency scanner with country specific frequency management database |
|
Infrared data transmission link |
|
Rehearsal function for finding dead spots |
Specifications
| Type of Receiver | SR450 |
| SR450 Type of Outputs | 3-pin XLR Balanced
1/4" Phone Unbalanced |
| SR450 Headphone Monitoring | No |
| SR450 Power Requirements | 12 V DC |
| SR450 Display | Back-Lit LCD |
| SR450 Mounting Options | RMU 400 Rackmount Kit |
| SR450 Antenna Type | Diversity |
| SR450 Dimensions | 7.6 x 1.7 x 7.4" (200 x 44 x 190mm) |
| SR450 Weight | 2.2 lbs (972 g) |
| Type of Transmitter | PT450 Bodypack |
| PT450 Type of Input Connector | 3-pin Mini XLR |
| PT450 Type of Microphone | MK/GL Instrument Cable |
| PT450 Interchangeable Mic Heads | No |
| PT450 Battery Type/Approx. Life | Single AA Alkaline, 6 hours |
| PT450 Mute Switch | On/Mute/Off |
| PT450 Level Control | 10 mW, 20 mW, or 50 mW |
| PT450 Antenna Type | Internal |
| PT450 Display | LCD |
| PT450 Dimensions (WxHxD) | 2.4 x 2.9 x 1.2" (60 x 73.5 x 30mm) |
| PT450 Weight | 90 g (3.2 oz.) |
| Type of System | UHF Bodypack |
| RF Carrier Frequency Range | Band 1 / 650.100 - 680.00 MHz |
| Overall Frequency Response | 35Hz to 20kHz |
| Signal-to-Noise Ratio | 120 dB(A) |
| # Of Channels | 1200 Carrier frequencies, 12 Preset |
| # Of Simultaneous Systems | Up to 12 |
| Warranty | AKG Acoustics 2 year parts & labor warranty |
| | |
|
|
|
|
