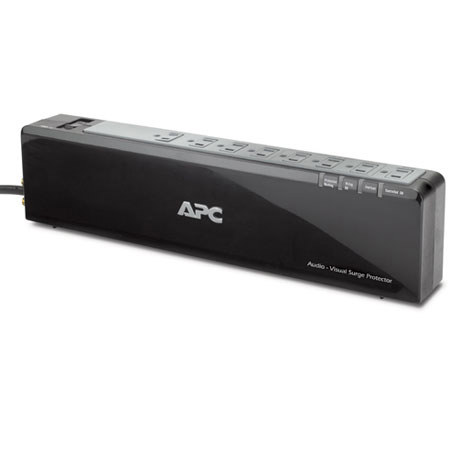

American Power Conversion (APC) P8V Premium Audio/Video 8 Outlet Surge Protector with Coax Protection, 120V, Black

Our Price

$37.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

American Power Conversion (APC) P8V: Picture 1 regular $37.95

About American Power Conversion (APC) P8V

The APC P8V Audio/Video Surge Protector is fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment. The APC P8V Audio/Video Surge Protector totes enough outlets accommodate wide transformer blocks without covering adjoining outlets and 2 always on outlets.

You can plug 8 power cords including 3 transformers at the same time. In case you have equipment that has to stay on all the time, such as fax machine, you can plug it in always on outlets. The equipment will be protected and will have power supply even when the unit is switched off. Additionally, this Audio/Video Surge Protector attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment. This APC P8V Audio/Video Surge Protector's LED informs users of potentially dangerous wiring problems in the wall circuit, so peace of mind is a surge protector away.

American Power Conversion (APC) P8V Features

  • Status Indicator LED's: Provides a quick visual indication of your unit's status
  • Resettable Circuit Breaker: Easy recovery from overloads; no need to replace a fuse
  • Noise Filtering: Surge Protector attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment
  • Cord Management: Reduces cord clutter
  • Building Wiring Fault Indicator: Immediately warns you of wiring problems like improper grounds that could cause shocks or prevent adequately suppressing surges
  • Catastrophic Event Protection: SurgeArrest components such as MOVs and thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment
  • Fail Safe Mode: Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges
  • IEEE let-through rating: The 'Institute of Electrical and Electronics Engineers' (IEEE) Let-Through Voltage rating is based on a test that subjects a Surge Protector to a 6,000 volt spike. The rating equates to the amount of excess voltage that reaches connected equipment
  • UL 1449 compliance: UL's best available rating against devastating surges and spikes is 330V of let through. APC Essential SurgeArrest has 330V let through voltage, thus meeting UL's requirement

American Power Conversion (APC) P8V Specifications

Number of Outlets
8
Receptacle Style
NEMA 5-15R
Nominal Input Voltage
120V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
NEMA 5-15P
Maximum Line Current per phase
15A
Cord Length
1.83 meters / 6.00 feet
Surge energy rating
4720 Joules
EMI/RFI Noise rejection
70 dB (100 kHz to 10 MHz)
Peak Current Normal Mode
20 kAmps
Peak Current Common Mode
40 kAmps
NM Surge Response Time (ns)
1 ns
Data Line Protection
Cable modem / Video protection
Data Lines Protected (multi-line only)
1
Let Through Voltage Rating
< 330
Operating Environment
0 to 40 Deg.C
Operating Relative Humidity
0 to 95%
Operating Elevation
0 to 15000 meters
Storage Temperature
-15 to 45 Deg.C
Storage Relative Humidity
0 to 95%
Storage Elevation
0 to 15000 meters
Regulatory Approvals
CSA,UL 1363,UL 1449
UL 1449 TVSS Rating
330V
Environmental Compliance
RoHS 7b Exemption
Dimensions (W x H x D)
3.8 x 15.5 x 2" (95 x 394 x 51mm)
Weight
2.1 lbs (0.95kg)
Mfr #
P8V
SKU
APCP8V

American Power Conversion (APC) P8V Reviews Powered by TurnTo®

Reviewed by 1 customers


5.0

P8V POWER FILTER

By

I INSTALLED MY P8V FILTER ON MY WIFES COMPUTER AND IT EAS VERY EASY TO INSTALL AND HAD ALL THE OLUGS I NEEDED TO INSTALL HER COMPUTER AND ALL ITS ACCESORIES. IT HAS LIGHT TO TELL YOU IF ITS OVERLOADED AND WORKING PROPERLY AND IF THE WIRING YOU PLUGGED IT INTO IS PROPERLY WIRED . ITS ANOTHER GREAY APC PRODUCT AND I WOULD RECOMEND IT TO EVERYONE

Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Ray V  Is the APCP8V wall mountable?
Andrew R  Unfortunately the manufacturer does not specify.
