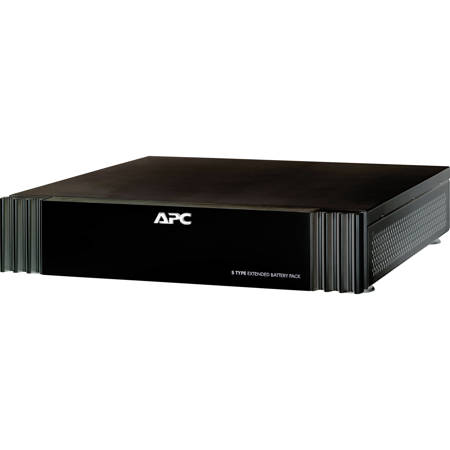

American Power Conversion (APC) AV S Type 48V DC Extended Battery Pack Black
See all American Power Conversion (APC) items

American Power Conversion (APC) AV S Type 48V DC Extended Battery Pack, Black

SKU: APCSBATTBLK
(2)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-04-29T20:00:00

Rated 5 out of 5

nice!

Bought this for some home office equipment and have only had to use it once, but did the job when needed!

osudk3329094d

2011-07-15T20:00:00

Rated 5 out of 5

So far so good :-)

I currently have 2 of these connected to an S15 AV UPS. The second one was on back order, and just arrived yesterday. I installed it and everything seems alright so far, and it added run time as it should. My only concern is, the SBATT is not user serviceable as far as replacing it's internal batteries. The SBATT's are very heavy of course, and it's a shame they have to be totally replaced with a new unit at their end of service, and the used ones have to be recycled and disposed of instead of just replacing the batteries as I mentioned.

0

American Power Conversion (APC) AV S Type 48V DC Specifications

  • Nominal Input Voltage

    48V DC

  • Operating Environment

    5 to 113 Deg.F (-15 to 45 Deg.C)

  • Operating Relative Humidity

    5 to 95%

  • Operating Elevation

    0-10000 feet (0-3000 meters)

  • Storage Temperature

    5 to 113 Deg.F (-15 to 45 Deg.C)

  • Storage Relative Humidity

    5 to 95%

  • Storage Elevation

    0 to 50000 feet (0 to 15000 meters)

  • Battery Capacity

    864 Volt-Amp-Hour

  • Battery Type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte (leakproof)

  • Battery mounting

    Stand alone battery stack

  • Expected Battery Life

    3 to 5 years

  • Battery Modules

    8

  • Battery blocks per string

    4

  • Dimensions (W x H x D)

    17.00 x 3.50 x 19.00 inches / 432 x 89 x 483 mm

  • Weight

    65.00 lbs / 29.55 kg

About American Power Conversion (APC) AV S Type 48V DC

The APC SBATTBLK AV S Type 48V DC Extended Battery Pack provides protection from blackouts, voltage sags & swells, electrical noise interference and damaging power transients. It eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.

American Power Conversion (APC) AV S Type 48V DC Features

  • Disconnected battery notification: Warns when a battery is not available to provide backup power
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature
  • Scalable runtime: Allows additional run time to be quickly added as needed
  • Rack mountable: Includes horizontal, vertical and toolless-mount capabilities
  • Power conditioning: Protects connected loads from surges, spikes, lightning and other power disturbances
  • Isolated filter banks: Eliminates electromagnetic and radio frequency interference (EMI/RFI) as a source of audio-video signal degradation
  • Dataline Surge Protection: Provides protection of connected equipment from power surges on the data lines
  • Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
  • Sequenced turn on/off: Helps power on components in the proper order to prevent speaker stress. Proper sequencing can also help manage current draw on startup to prevent unnecessary circuit breaker tripping
  • LED & display dimmer: Adjust the unit's LED and display brightness independently of each other to suit your individual tastes and environment

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Scalable runtime

What's in the box:

  • APC AV S Type 48V DC Extended Battery
  • All Required Connectors
  • Rack Mounting Brackets
  • User Manual
  • APC 2 Years Warranty
