| Output Power Capacity |
1000 Watts / 1500 VA |
| Max Configurable Power |
1000 Watts / 1440 VA |
| Nominal Output Voltage |
120V |
| Output Voltage Distortion |
Less than 5% at full load |
| Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal |
| Topology |
Line Interactive |
| Waveform Type |
Sine wave |

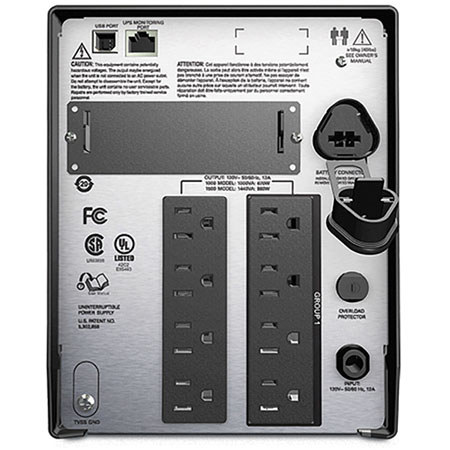

| Output Connections |
8 x NEMA 5-15R |
| Nominal Input Voltage |
120V |
| Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections |
NEMA 5-15P |
| Cord Length |
1.83m / 6.00ft |
| Input voltage range for main operations |
82 - 144V |
| Input voltage adjustable range |
75 - 154V |
| Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time |
3 hours |
| Replacement Battery |
RBC7 |
| RBC Quantity |
1 |
| Interface Port(s) |
SmartSlot, USB |
| Available SmartSlot Interface Quantity |
1 |
| Control panel |
Multi-function LCD status and control console |
| Audible Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
| Emergency Power Off (EPO) |
Optional |
| Surge energy rating |
459 Joules |
| Filtering |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
| Operating Environment |
0 - 40 deg.C |
| Operating Relative Humidity |
0 - 95% |
| Operating Elevation |
0-3000 meters |
| Storage Temperature |
-15 - 45 deg.C |
| Storage Relative Humidity |
0 - 95% |
| Storage Elevation |
0-15000 meters |
| Audible noise at 1m from surface of unit |
45.00 dBA |
| Online Thermal Dissipation |
135.00 BTU/hr |
| Regulatory Approvals |
cUL Listed, ENERGY STAR (USA),UL 1778 |
| Environmental Compliance |
RoHS 7b Exemption, REACH: Contains No SVHCs |
| Dimensions (HxWxD) |
219x171x439mm / 8.62x6.73x17.28" |
| Weight |
24.09kg / 53.10lbs |
