American Power Conversion (APC) SMT1500X413 Smart UPS 1500VA UPS with LCD and Audible Alarm Disabled, 120V

SKU: APCT1500X413

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American Power Conversion (APC) SMT1500X413 Specifications

  • Output Power Capacity

    980W/1500VA

  • Max Configurable Power

    980W/1440VA

  • Nominal Output Voltage

    120V

  • Output Voltage Distortion

    Less than 5%

  • Output Connections

    8x NEMA 5-15R

  • Output Frequency (sync to mains)

    47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal

  • Topology

    Line Interactive

  • Waveform Type

    Sine wave

  • Nominal Input Voltage

    120V

  • Input Frequency

    50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections

    NEMA 5-15P

  • Cord Length

    6' (1.83m)

  • Input voltage range for main operations

    82 - 144V

  • Input voltage adjustable range

    75 - 154V

  • Battery Type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

  • Typical recharge time

    3 hour(s)

  • Replacement Battery

    RBC7

  • RBC Quantity

    1

  • Interface Port(s)

    USB

  • Available SmartSlot Interface Quantity

    1

  • Control panel

    Multi-function LCD status and control console

  • Audible Alarm

    Alarm when on battery: distinctive low battery alarm: configurable delays

  • Emergency Power Off (EPO)

    Optional

  • Surge energy rating

    455 Joules

  • Filtering

    Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

  • Operating Environment

    32-104deg.F (0-40deg.C)

  • Operating Relative Humidity

    0 - 95%

  • Operating Elevation

    0-10000' (0-3000m)

  • Storage Temperature

    5-113deg.F (-15-45deg.C)

  • Storage Relative Humidity

    0 - 95%

  • Storage Elevation

    0-50000' (0-15000m)

  • Audible Noise

    45.00 dBA at 1 meter from surface of unit

  • Online Thermal Dissipation

    135.00 BTU/hr

  • Dimensions (HxWxD)

    8.62x6.73x17.28" (21.89x17.09x43.89cm)

  • Weight

    53.00lbs (24.04kg)

About American Power Conversion (APC) SMT1500X413

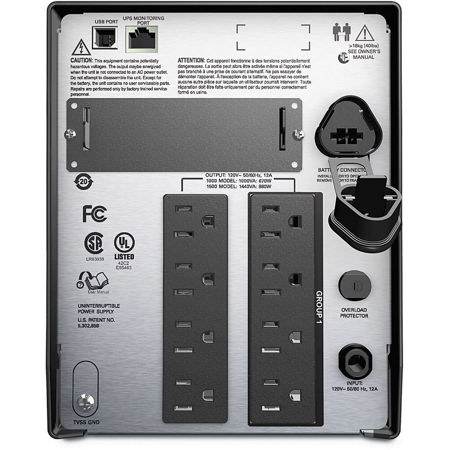

The APC SMT1500x413 Smart UPS 1500VA with LCD and Audible Alarm Disabled ( 120V ) is a 980W/1500VA uninterruptible power supply that features eight battery-powered outlets, a replaceable battery with a 3 hour recharge time and an LCD status and control panel. It also supplies battery-powered AC, provides a predictive battery replacement date and allows UPS customization with SmartSlot cards.

This unit comes with an intuitive LCD interface that provides clear and accurate information and allows you to configure the UPS locally. It also features the ability to regulate the UPS according to the battery temperature, so if the unit is running hot, it can compensate by lowering the charge. It also operates with a pure sine wave output, which mimics utility power to the closest margins and levels of compatibility for power factor corrected servers and sensitive electronics.

In Green Mode, the Smart-UPS 1500VA bypasses unused electrical components that are in good operating condition and provides power where it is most needed, which gives the unit a very high operating efficiency without skimping on protection for all devices. This unit is shipped from the factory with the audible alarm feature turned off. You can reactivate the alarm through the LCD status and control panel. The Smart-UPS 1500VA with LCD and Audio Alarm Disabled is a smart and efficient way to manage power and maintain control over all your powered devices.

American Power Conversion (APC) SMT1500X413 Features

  • Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
  • Predictive Replace Battery Date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
  • Green Mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
  • Energy Meter: Provides actual kilowatt hours of usage for energy conscious users
  • Pure Sine Wave Output on Battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
  • Single Switched Outlet Group: Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
  • High Online Efficiency: Reduces utility costs, generates less heat
  • SmartSlot: Customize UPS capabilities with management cards
  • Cold-Start Capable: Provides temporary battery power when the utility power is out
  • Temperature-Compensated Battery Charging: Prolongs battery life by regulating the charge voltage according to battery temperature

Key Features

  • Intuitive LCD interface
  • Predictive Replace Battery Date
  • Energy Meter: Provides actual kilowatt hours of usage
  • Pure Sine Wave Output on Battery
  • Single Switched Outlet Group
  • High Online Efficiency

What's in the box:

  • APC SMT1500X413 Smart UPS 1500VA UPS with LCD and Audible Alarm Disabled
  • CD with Software
  • Documentation CDSmart-UPS Signaling RS-232 Cable
  • USB Cable
  • APC Warranty
