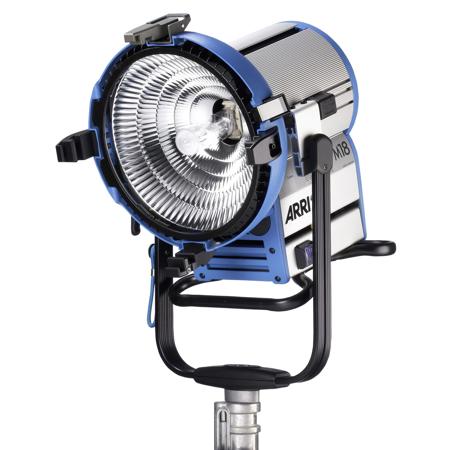

ARRI M18 HMI Lamphead with ALF/DMX Ballast Kit, Multivoltage, Silver

SKU: AR518560

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ARRI M18 Specifications

  • Socket (Lampholder)

    G38 High Voltage

  • Mounting

    1.12" / 28.5 mm stand mount

  • Ballast Cable Length

    50' / 15.24 m

  • Dimensions

    Lamphead: 27.5" x 15.25" x 15.25" / 698.5 x 387.35 x 387.35 mm
    Ballast: 6.1" x 7.9" x 13.2" / 154.94 x 200.66 x 335.28 mm

  • Weight

    Kit: 54.3 lbs (24.6 kg)
    Lamphead: 23.1 lbs / 10.5 kg
    Ballast: 17.7 lbs / 8.02 kg

3 Accessories for ARRI M18 HMI Lamphead with ALF/DMX Ballast Kit, Multivoltage, Silver

  • All Accessories (3)
  • Barndoors (1)
  • Lamps & Bulbs (1)
  • Bags & Cases (1)

About ARRI M18

The Arri M18 HMI Lamphead (Sliver) is an open-face, lensless, more efficient lamphead built to work with a new power class of lamp - the 1800 W SE HMI (not included), which has an average life of 750 hours, a luminous efficacy of 92 lumens/watt and a Color Rendering Index (CRI) greater than 90 at 6000 K. DMX control and ALF (Active Line Filter) together produce much more efficient power use in an already very efficient lighting fixture. The M18 combines the best aspects of a PAR and a Fresnel, creating diverging rays of light to produce a very crisp shadow. This fixture is supplied for use with 90-125/180-250 V AC. This lamp has a beam angle (HPA) of 20 to 60 degrees, with a wide usable field angle.

ARRI M18 Features

  • Can operate on a 20 A circuit
  • 1800 W possible
  • Flicker-free operation up to 10,000 fps
  • Constant lamp power and color temperature over the lifetime of the lamp
  • Light dims between 50 and 100%
  • Low noise switch noise reduction in the luminary
  • Active Line Filter power factor correction
  • Line over-voltage protection
  • Protection from overheating

Product Documents

User Manual

Key Features

  • Can operate on a 20 A circuit
  • 1800 W possible
  • Flicker-free operation up to 10,000 fps
  • Constant lamp power & color temperature over the lifetime of the lamp
  • Light dims between 50 & 100%
  • Low noise switch noise reduction in the luminary

What's in the box:

  • ARRI M18 HMI Lamphead (110/220VAC)
  • Four Leaf Barndoor Set for ARRI T5 & ST2 Studio Fresnel
  • Head-to-Ballast Cable
  • 1200/1800W Electronic Ballast With DMX & ALF
  • ARRI 1 Year Warranty
