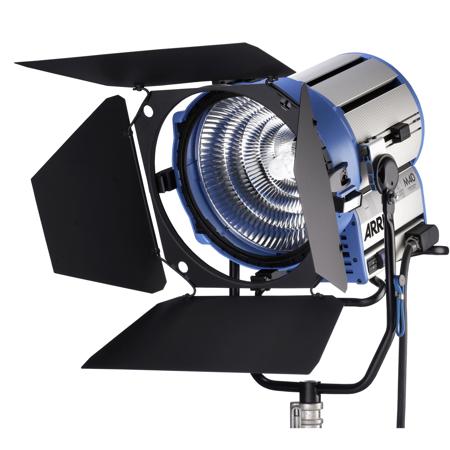

Arri M40 HMI System with High Speed Ballast, Includes HMI Head, Electronic Ballast, Four Leaf Barndoor Set, Head to Ballast Cable

Arri

About Arri M40

The Arri M40 HMI System with High Speed Ballast features the M40 HMI fixture with a high speed 2500/4000W electronic ballast with an Active Line Filter and DMX support, a four leaf barndoor set and a 50' head to ballast cable. The M40 is a lensless fixture with a wide focusing range that offers a powerful 2500 or 4000 watt daylight-balanced light source. It works with the high speed ballast's Active Line Filter for minimal power fluctuations and color shifts as well as DMX support for dimming from a control panel. Included with this system are a four leaf barndoor set for making slight adjustments to the light direction and a 50' head to ballast cable.

Arri M40 Specifications

M40 HMI Head: Rating
2,500 to 4,000W
M40 HMI Head: Lamp Type
HMI 2500 or 4000 W/SE G38
M40 HMI Head: Socket (Lampholder)
G38
M40 HMI Head: Color Temperature
6,000K (with optional lamp)
M40 HMI Head: Accessory Size
15.8" (40.13cm)
M40 HMI Head: Mounting
1 1/8" (28.44mm) Male stand mount
M40 HMI Head: Protection Class
IP23
M40 HMI Head: Power Requirements
100-240 VAC
M40 HMI Head: Photometrics 1
With 4,000W Lamp
Spot 18deg.:
At 16.4' (5.0 m): 77,500 lux with a beam diameter of 5.2' (1.6 m)
At 32.8' (10 m): 19,375 lux with a beam diameter of 10.5' (3.2 m)
At 49.2' (15 m): 8,611 lux with a beam diameter of 15.7' (4.8 m)
Medium: 30deg.:
At 16.4' (5.0 m): 25,800 lux with a beam diameter of 8.8' (2.7 m)
M40 HMI Head: Photometrics 2
At 32.8' (10 m): 6,450 lux with a beam diameter of 17.7' (5.4 m)
At 49.2' (15 m): 2,867 lux with a beam diameter of 26.2' (8.0 m)
Flood: 52deg.:
At 16.4' (5.0 m): 10,900 lux with a beam diameter of 16' (4.9 m)
At 32.8' (10 m): 2,725 lux with a beam diameter of 32.1' (9.8 m)
At 49.2' (15 m): 1,211 lux with a beam diameter of 47.9' (14.6 m)
M40 HMI Head: Certifications
NRTL-US-C, CE, TÜV GS, CB
M40 HMI Head: IP Rating
IP23 - weather resistant
Ballast: Lamp Power
2.5/4KW
Ballast: Input Voltage
90-125/180-250VAC
Ballast: Dimmer
50-100% of lamp power
Dimensions
M40 HMI Head: 29 x 20.1 x 18.4" (73.66 x 51.05 x 46.73cm)
Ballast: 9.5 x 14 x 17.7" (24.13 x 35.56 x 44.95cm)
Weight
M40 HMI Head: 75lbs (34.01kg)
Ballast: 43lbs (19.5kg)
