Flash/Lighting
Constant Output Lighting
Tungsten Units
Arri Tungsten Units
Arri H-4 Hybrid AC Kit With Wheels, 120-230VAC
Arri

Arri H-4 Hybrid AC Kit With Wheels, 150W & 300W Tungsten Fresnel Light, Variable Color Temperature LEDs, Baby Pin (5/8") with 3/8" Thread, 120-230VAC

SKU: AR553963 MFR: 553963
What's Included
What's Included With This Item:
  • Arri LoCaster LED Panel with Stirrup
  • 2 Leaf Barndoor for LoCaster/BroadCaster
  • Filter Frame for LoCaster LED
  • Power Supply for LoCaster (100-240V)
  • PowerDMX Extension Cable XLR 4-Pin for BroadCaster (10')
  • Baby Pin (5/8") with 3/8" Thread for LoCaster
  • 150 Watt Fresnel Tungsten Light (220VAC)
  • Four Leaf Barndoor Set for Arri 150W Fresnel
  • Filter Frame for 150 Watt Fresnel
  • Full Single Scrim for 150W Fresnel-3"
  • Arri Warranty (See Specifications for More Item Includes)
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,834.75
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

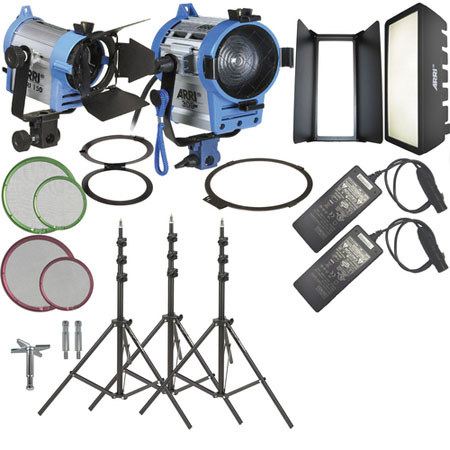

The Arri H-4 Hybrid AC Kit with Wheels (120-230VAC) combines 1 Arri LoCaster LED variable color temperature light with an Arri 150W tungsten Fresnel fixture and an Arri 300W tungsten Fresnel fixture. The LED is continuously dimmable and offers 6 different color temperatures between 2800deg.K and 6500deg.K. At only 2 lbs, it can fit (even with included barndoors) into places a tungsten Fresnel light can't. And the included power supply for the LED can be operated on 120-230VAC. The Fresnel lights produce impressive light output and good light distribution over the full beam area (due to their short-focal-length wide-angle lenses). Whether you're using film or modern light-sensitive digital media, a kit like this will be all you need to solve a surprising number of lighting problems. Kit is supplied for 120VAC. 150W and 300W Fresnel fixtures may be operated on 220VAC with optional plugs and bulbs.

What's Included With This Item

  • Arri LoCaster LED Panel with Stirrup
  • 2 Leaf Barndoor for LoCaster/BroadCaster
  • Filter Frame for LoCaster LED
  • Power Supply for LoCaster (100-240V)
  • PowerDMX Extension Cable XLR 4-Pin for BroadCaster (10')
  • Baby Pin (5/8") with 3/8" Thread for LoCaster
  • 150 Watt Fresnel Tungsten Light (220VAC)
  • Four Leaf Barndoor Set for Arri 150W Fresnel
  • Filter Frame for 150 Watt Fresnel
  • Full Single Scrim for 150W Fresnel-3"
  • Arri Warranty (See Specifications for More Item Includes)

Key Features

  • LoCaster LED: Tunable white light from tungsten to daylight
  • LoCaster LED: High intensity
  • LoCaster LED: Low power consumption
  • LoCaster LED: Excellent shadow rendering
  • LoCaster LED: CRI of 90
  • LoCaster LED: Absolute color temperature and intensity stability
  • LoCaster LED: Onboard control
  • LoCaster LED: Easy portability
  • 150W Tungsten Fresnel: Lightweight; compact size
  • 150W Tungsten Fresnel: Robust construction of rust-resistant, extruded, die-cast aluminum
  • 150W Tungsten Fresnel: High quality 2" (50mm) Fresnel lens and reflector for excellent optical performance
  • 150W Tungsten Fresnel: Uses 100, 150 or 200W lamps
  • 150W Tungsten Fresnel: Good light distribution over the full beam area

Technical Specs

Item Includes-1 Full Double Scrim for 150W Fresnel-3" - Lamp for 150 Fresnel-150W/120V - 3 x AS-01 Lightweight Light Stand-8.3' (2.5m) - 300W Tungsten Fresnel Light - 4 Leaf Barndoor Set for Arri 1K/575W HMI/Arrisun 5 PAR - Filter Frame for 1K Fresnel/Compact HMI 575W - Full Single Scrim for Arrilite 600/300W Fresnel/125W HMI Fresnel-5" - Full Double Scrim for Arrilite 600/Fresnel 300W/125W-5" - FKW Lamp-300W/120V - Ceiling Scissor Clamp with 5/8" Stud - Hybrid Kit Case with Wheels
LoCaster LED: Rating 35 watts
LoCaster LED: Color Range 2800K-6500K
LoCaster LED: Operating Voltage 11-36VDC
With Power Supply: 100-240VAC
LoCaster LED: Dimming 0-100%
LoCaster LED: Cable 4-Pin XLR
LoCaster LED: Mount 3/8" (9.5 mm) Female thread
Power Supply: Rating 60W
Power Supply: Operating Voltage 100-240VAC, 50-60Hz
Power Supply: Dimming On panel
Power Supply: Cable AC cord w/ 3-pin grounded US plug
Extension Cable: Length 10' (3 m)
Tungsten Fresnel Light: Rating 150 Watts
Tungsten Light: Socket (Lampholder) BA15d
Tungsten Light: Lens (Condenser) 2" (50mm) low expansion borosilicate Fresnel lens
Tungsten Light: Reflector (Mirror) Spherical specular high purity aluminum
Tungsten Light: Mounting 5/8" (16mm) stand mount
Tungsten Light: Yoke Fits on standard 5/8" stand or mounting stud
Tungsten Light: Cable 15' (4.6 m)
Tungsten Light: Focusing Worm gear driven
Lamp for 150 Fresnel: Watts 150
Lamp for 150 Fresnel: Volts 120
Lamp for 150 Fresnel: Color Temperature 2900deg.K
Lamp for 150 Fresnel: Average Life Hours 2000
Lamp for 150 Fresnel: Approx. Lumens 2800
Lamp for 150 Fresnel: Base Type BA15d
Lamp for 150 Fresnel: Filament Type CC-8
Lamp for 150 Fresnel: Length 62mm
Light Stand: Minimum Height 2.25 ft (10.6 cm)
Light Stand: Maximum Height 8.3 ft (255 cm)
Light Stand: Closed Length 2.5 ft (76 cm)
Light Stand: Maximum Load 9 lbs (4.1 kg)
Light Stand: Attachment Size 5/8 in stud
Dimensions Power Supply: 4.7 x 2.1 x 1.4" (12 x 5.5 x 3.5 cm)
LoCaster LED: 8.7 x 3.75 x 2.75" (22 x 9.5 x 7 cm)
Tungsten Fresnel Light: 5.25 x 7.75 x 6.1" (13.3 x 19.7 x 15.6 cm)
Hybrid Kit Case: 32 x 15 x 8.75" (81.28 x 38.1 x 22.22cm)
Kit: 32 x 15 x 8.75" (81.3 x 38.1 x 22.2 cm)
Weight LoCaster LED: 2.11 lbs/0.9 kg (without Stirrup)
Power Supply: 0.66 lbs (0.3 kg)
Tungsten Fresnel Light: 2.3 lbs (1 kg)
Light Stand: 2lbs (0.9 kg)
Hybrid Kit Case: 16.6 lbs (7.5kg)
Kit: 37.4 lbs (17 kg)
