Arri Softbank D4 Four Light Tungsten Fresnel Kit (220VAC)

SKU: AR571863W MFR: 571863W
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,800.00 List Price

Our Price

Free Shipping
Add to Wishlist

Protect your investment

About the Arri D4

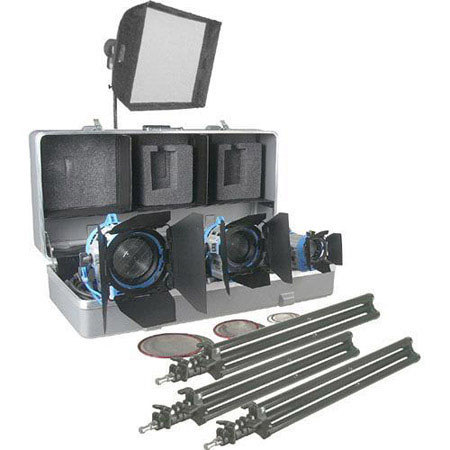

The Arri Softbank D4 Four-Light Kit (220 V AC) is designed with modern, light-sensitive digital media in mind, so you can accomplish more than you might think with the 1250 total watts in this package. Three of Arri's most popular Fresnel lights form the core of this complete lighting outfit: the Arri 150 W (two included) is a small Fresnel with great performance and rugged construction, with a 2" (50 mm) Fresnel lens; the very efficient 300 W Plus Fresnel uses a 3.2" (80 mm) low expansion, borosilicate Fresnel lens to produce a soft, even field of light. The 650 W Fresnel features a 4.3" (110 mm) lens and the same reflector, housing and power cord as the 300 W Fresnel, producing (of course) more light. A Chimera 16 x 22" softbox is included (perfect for interviews and soft light in tight spaces), as well as barndoors, filter frames, light stands, bulbs, a ceiling scissor clamp and a hard compact wheeled carrying case for storage and transport. This kit is equipped for 220 V AC operation.

Arri D4 Includes

  • Arri 2 x 150 Watt Fresnel Tungsten Light (220VAC)
  • 2 x Four Leaf Barndoor Set for Arri 150W Fresnel
  • 2 x Filter Frame for Plus 300/HMI 125W Fresnels
  • 2 x Full Single Scrim for 150W Fresnel( 3")
  • 2 x Full Double Scrim for 150W Fresnel (3")
  • 2 x ESP Lamp (150 Watts/120 Volts)
  • 300 Watt Plus Tungsten Fresnel (120-240VAC)
  • 4 Leaf Barndoor Set for 300W Fresnel/125W HMI/ 200W Pocket PAR
  • Filter Frame for 150 Watt Fresnel
  • Arri Warranty (See Specifications for More Item Includes)

Arri D4 Features

  • Light Spread: Each Fresnel fixture produces a soft, even field of light
  • Lenses: The Arri 650 has a 4.3" (110 mm) low expansion, borosilicate Fresnel lens. The Arri 300 Plus has a similar lens, measuring 3.2" (80 mm). Each Fresnel 150 has a 2" (50 mm) Fresnel lens
  • Ventilated Housings: Ribbed for cooler operation, the fixture ribs act like heat sinks to help disperse any heat build-up
  • Aluminum Reflectors: Spherical, specular, high purity reflectors insure even light
  • 16 x 22" Softbox with Adapter: Chimera Video Pro Softbox provides varying degrees of softness, with a removable front diffuser
  • Barndoors, Scrims and Filter Frames: Enable adjustments of the fixture's light spread, intensity
  • Drop-Ceiling Clamp: For mounting a 300 Fresnel from a drop-ceiling frame. It features a standard 5/8" (baby) mounting stud
  • Compact Wheeled Kit Case: Vacuum Molded ABS Plastic Case. Butterfly Latches and Reinforced Piano Hinge. Spring-loaded Side and Top Handles

Arri D4 Specifications

Item includes 1 Full Single Scrim for Arrilite 600/ 300W Fresnel/ 125W HMI Fresnel (5") - Full Double Scrim for Arrilite 600/ Fresnel 300W/125W (5") - FKW Lamp (300 Watts/120 Volts) - 650 Watt Plus Tungsten Fresnel (120-240VAC) - 4 Leaf Barndoor Set for 650W Fresnel/ 200W HMI/400W Pocket PAR - Filter Frame for 650W Fresnel/ 200W HMI Fresnel - Full Single Scrim for 650 Fresnel/ Arrisun 2/ HMI Fresnel 200 (6-5/8" - Full Double Scrim for 650W Fresnel, Arrisun 2, HMI 200W (6-5/8")
Item includes 2 Speed Ring for 650W Fresnel - Video Pro Bank XS (16 x 22") by Chimera -FRK Lamp - 650 Watts/120 Volts - Ceiling Scissor Clamp with 5/8" Stud - 3 x AS-01 Lightweight Light Stand (2.5m) - 571194W 3-Light Case with Wheels
Rating Each Fresnel 150: 150W
Fresnel 300: 300W
Fresnel 650: 650W
Socket (Lampholder) GY9.5
Lens (Condenser) Each Fresnel 150: 2" (50.8 mm)
Fresnel 300: 3.2" (81.28 mm)
Fresnel 650: 4.3" (109.2 mm)
All with low expansion borosilicate Fresnel lenses
Reflector (Mirror) Spherical, specular, high purity aluminum
Mounting 5/8" (16 mm) stand mount
Yoke Fits on standard 5/8" stand or mounting stud
Cable Each Fresnel 150: 15' (4.6 mm)
Fresnel 300, 650: 25' (7.62 m) with in-line switch
Focusing Worm-gear driven
Dimensions Each Fresnel 150: 5.25 x 7.75 x 6.1" (13.3 x 19.7 x 15.6 cm)
Fresnel 300: 7.1 x 10 x 6.3" (18 x 25.4 x 16 cm)
Fresnel 650: 9 x 12 x 7.5" (22.86 x 30.5 x 19.1 cm)
Kit in Case: 32.5 x 17 x 10.75" (82.55 x 43.18 x 27.31 cm)
Weight Each Fresnel 150: 2.3 lbs (1.04 kg)
Fresnel 300: 6.5 lbs (2.94 kg)
Fresnel 650: 7.2 lbs (3.3 kg)
Kit: 52 lbs (23.6 kg)
