ARRI LITE 575 Plus/Fresnel Mini Kit, Includes 300W Plus Tungsten Fresnel, 4 Leaf Barndoor Set for 300W Fresnel, 4-Light Case with Wheels, 120V

SKU: AR571993P

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ARRI ARRILITE 575 Plus/Fresnel Mini Kit, 120V Specifications

  • Tungsten Fresnel: Socket (Lampholder)

    GY9.5

  • Tungsten Fresnel: Rating

    300 Watts, 120-240VAC

  • Tungsten Fresnel: Lens (Condenser)

    3.2" (80 mm) low expansion borosilicate Fresnel lens

  • Tungsten Fresnel: Reflector (Mirror)

    Spherical, specular, high purity aluminum

  • Tungsten Fresnel: Mounting

    5/8" (16 mm) stand mount

  • Tungsten Fresnel: Yoke

    Flat blade Attaches to any 5/8" (16 mm) stud

  • Tungsten Fresnel: Cable

    25' (7.6 m) cable, 120V Grounded Edison Plug, inline switch

  • Tungsten Fresnel: Focusing

    Worm gear driven

  • FKW Lamp: Application

    Stage, film and photography

  • FKW Lamp: Watts

    300

  • FKW Lamp: Volts

    120

  • FKW Lamp: Color Temperature

    3200 K

  • FKW Lamp: Average Life

    1100

  • FKW Lamp: Approx. Lumens

    7800

  • FKW Lamp: Base Type

    GZ9.5 - Prefocus 2-pin; round 3.2mm & 2.4mm; 9.5mm centered

  • FKW Lamp: Filament Type

    C-13, burn any position

  • FKW Lamp: Length

    3.54" (8.8 cm)

  • Stand: Minimum Height

    2.25 ft (10.6 cm)

  • Stand: Maximum Height

    8.3 ft (255 cm)

  • Stand: Closed Length

    2.5 ft (76 cm)

  • Arrilite 750 Plus: Rating

    750W

  • Arrilite 750 Plus: Type

    Open face with parabolic facet reflector

  • Arrilite 750 Plus: Socket (Lampholder)

    G 9.5

  • Arrilite 750 Plus: Lens (Condenser)

    None

  • Arrilite 750 Plus: Lamps

    120V/230V: HPL 750W, 575W, 375W

  • Arrilite 750 Plus: Reflector (Mirror)

    Arrimax reflector

  • Arrilite 750 Plus: Mounting

    5/8" (16 mm)

  • Arrilite 750 Plus: Yoke

    One-arm stirrup

  • Arrilite 750 Plus: Cable

    9.8' (3 m) w/ inline switch

  • Arrilite 750 Plus: Focusing

    Yes

  • Arrilite 750 Plus: Voltage

    120 - 230V AC

  • Arrilite 750 Plus: Certification

    NRTL-US-C, CE, T'V GS, CB, Protection Class IP 20

  • Stand: Maximum Load

    9 lbs (4.1 kg)

  • Stand: Attachment Size

    5/8 in stud

  • Stand: Accepts Wheels

    No

  • Stand: Air Cushioned

    No

  • Light Case: Material

    Exterior: Vacuum molded ABS plastic shell & Aluminum trim
    Interior: Convoluted foam inside lid

  • Light Case: Type of Closure

    Surface mounted butterfly latches
    Reinforced piano hinge

  • Light Case: Carrying/Transport Options

    Side carry handle
    Top carry handle
    Built-in wheels

  • Light Case: Compatibility

    Four Arri 150, 300 Fresnel lights
    Four Arrilite 650 tungsten flood lights

  • Dimensions

    Tungsten Fresnel: 7.1 x 10 x 6.3" (18 x 25.4 x 16 cm)

  • Weight

    Tungsten Fresnel: 6.5 lbs (2.9 kg)
    Stand: 2lbs (.9 kg)
    Arrilite 750 Plus: 3.55 lb (1.6 kg)
    Light Case: 22.75 lbs (10.32kg)

2 Accessories for ARRI LITE 575 Plus/Fresnel Mini Kit, Includes 300W Plus Tungsten Fresnel, 4 Leaf Barndoor Set for 300W Fresnel, 4-Light Case with Wheels, 120V

  • All Accessories (2)
  • Albums & Frames (1)
  • Production Accessories (1)

About ARRI ARRILITE 575 Plus/Fresnel Mini Kit, 120V

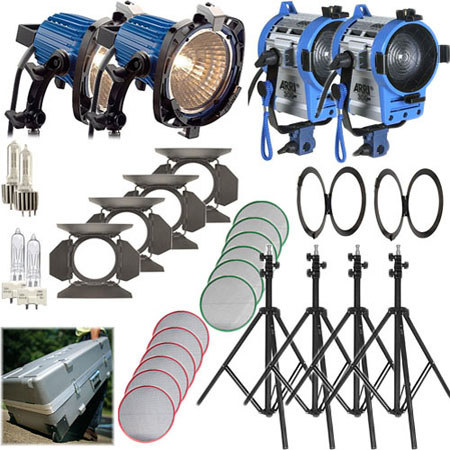

The Arri ARRILITE 575 Plus/Fresnel Mini Kit, 120V packs a lot ground-breaking technology coupled with industry benchmark performance to make it one of the most versatile kits that Arri offers. The kit consist two ARRILITE Plus open face lights with a full complement of accessories, including scrims barn doors and filter frames. Three 300W Arri Fresnel's are included each with its own set of accessories as well. Lamps and stands are provided for each light as well as a wheeled shipping case to transport and store it all.

The Arri ARRILITE 750 Plus is an enhanced version of the tried-and-true ARRILITE open face line. ARRI started with the basic design of the ARRILITE 800 and optimized the reflector to increase output 21% using a 575W HPL lamp which employs a compact filament that concentrates and augments light while increasing efficiency. The result is almost double the output. A redesigned one-arm stirrup instead of a yoke facilitates greater movement while the dedicated accessory holder allows use of chimera soft boxes without a speed ring.

The Arri 300W Plus Fresnel is designed to gather as much light as possible and direct it through the 3.2" (81.2 mm) low expansion, borosilicate Fresnel lens producing a soft, even field of light. The beam spread is 15 - 55deg.

Product Documents

User Manual

What's in the box:

  • ARRI 300 Watt Plus Tungsten Fresnel 120-240VAC (2)
  • 4 Leaf Barndoor Set for 300W Fresnel
  • 125W HMI
  • 200W Pocket PAR (2)
  • Full Single Scrim (2)
  • Full Double Scrim (2)
  • Filter Frame (2)
  • FKW Lamp 300W
  • 120V (2)
  • 8.3' 2.5m (4) AS-01 Lightweight Light Stand
  • ARRIlite 750 Plus (2)
  • 4 Leaf Barndoor Set (2)
  • Full Double Scrim
  • 575W HPL LAMP 120V (2)
  • 4-Light Case with Wheels
  • ARRI 1 Year Warranty
