Arri X-Fly 20 6.5' Friction Pantograph with 1-1/8" Top Socket & 1-1/8" Bottom Spigot

SKU: ARS1FP220N59 MFR: L2.0005319

List Price: $559.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

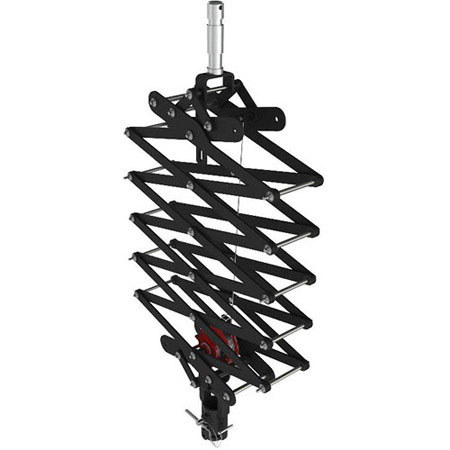

Arri X-Fly 20: Picture 1 regular $488.95

About Arri X-Fly 20

The Arri X-Fly 20 6.5' Friction Pantograph comes completely factory assembled with 1-1/8" adapters at the top and bottom. The double scissors mechanism provides the rigidity to stabilize loads of up to 40 lb (18 kg) using optional counter balance springs. Clips to attach a power cord for a lighting circuit are included. The patented built in friction brake with its colored notched ring allows you to adjust the friction to ensure the load will float once set into position, but will move smoothly up and down when necessary.

Arri X-Fly 20 Features

  • Designed to meet DIN EN15560-46, BG VC1 standards
  • Clips to attach flexible power cord to scissors
  • Designed with a safety factor of 10
  • 2.0 mm diameter steel cable as load carrier

Arri X-Fly 20 Specifications

Maximum Extension: 6.5' (2.0 m)
Closed Length: 10.6" (27cm)
Load Capacity
Without optional counter balance springs: 8.8lbs (4.0kg)
With optional counter balance springs: 40lbs (18.1kg)
1-1/8" Top Socket, 1-1/8" Bottom Spigot
15.8 x 4.7" (401.3 x 119.4mm) (W x D) (Without electrical cable attached)
