Arri X-Fly 20 12.5' Friction Pantograph, 40lbs (18.14kg) Load Capacity, External Spring Counterbalance

SKU: ARS1FP238 MFR: L2.0005321

Our Price

$649.90
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $728.00

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • Designed to meet DIN EN15560-46, BG VC1 standards
  • Clips to attach flexible power cord to scissors
  • Designed with a safety factor of 10
  • 2.0 mm diameter steel cable as load carrier
Arri X-Fly 20 12.5' Friction Pantograph, 40lbs (18.14kg) Load Capacity, External Spring Counterbalance $649.90

About Arri S1.FP238

The Arri X-Fly 20 12.5' Friction Pantograph comes completely factory assembled with a choice of optional adapters at the top and bottom. The double scissors mechanism provides the rigidity to stabilize loads of up to 40 lbs (18.14 kg) using optional counter balance springs. Clips to attach a power cord for a lighting circuit are included. The patented built in friction brake with its colored notched ring allows you to adjust the friction to ensure the load will float once set into position, but will move smoothly up and down when necessary. Loads over 8.8 lbs (4.0 kg) require separate purchase of counter balance springs.

Arri S1.FP238 Features

  • Designed to meet DIN EN15560-46, BG VC1 standards
  • Clips to attach flexible power cord to scissors
  • Designed with a safety factor of 10
  • 2.0 mm diameter steel cable as load carrier

Arri S1.FP238 Specifications

Travel

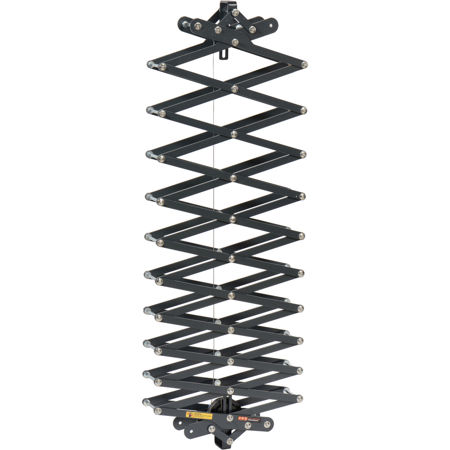

Maximum Extension: 12.5' (3.81m)

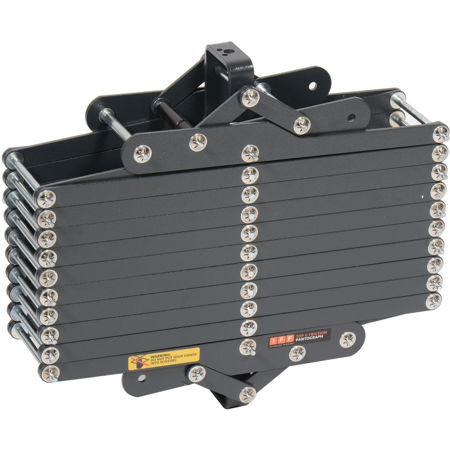

Closed Length: 14.9" (37.85cm)
Load Capacity
Without optional counter balance springs: 8.8lbs (4.0kg)
With optional counter balance springs: 40lbs (18.14kg)
Mount
Body Only
Dimensions (W x D)
15.8 x 4.7" / 40.13 x 11.94cm (Without electrical cable attached)
Mfr #
L2.0005321
SKU
ARS1FP238
