Asante SFP M1000LX 1000BaseLX SFP MiniGBIC Module
Asante

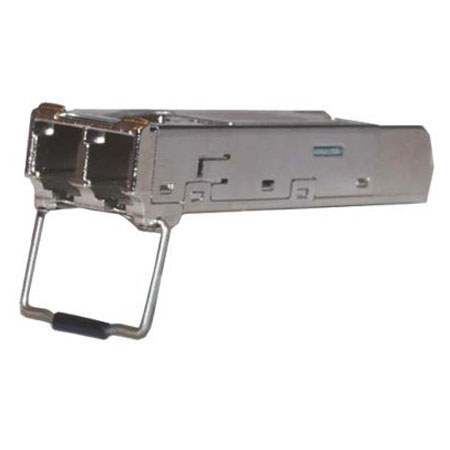

Asante SFP M1000LX 1000BaseLX SFP MiniGBIC Module

SKU: AS9900632 MFR: 99-00632
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$449.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Asante SFP M1000LX 1000BaseLX SFP MiniGBIC Module is the perfect solution for connecting enterprise Gigabit Ethernet switch with GBIC interfaces. It offers the greatest flexibility and value. Depending on your existing network structure, the GBIC interface on your switch can be configured with a 1000LX GBIC module.

Key Features

  • Hot swappable
  • Small Form Factor Pluggable MSA compliant
  • Compliant with IEEE 802.3z Gigabit Ethernet standards
  • Low power consumption
  • 3.3 VDC power supply
  • M1000LX supports distances up to 10 kilometers
  • GBIC converters provided by Asante are also compatible with Fiber Channel applications

Technical Specs

LAN Fiber Gigabit Ethernet: LC connector
Form Factor Small Form Factor Pluggable MSA compliant
Wavelength 1310 nm
Fiber Type Single-mode (SMF)
Typical Coverage Up to 10 kilometers
Network IEEE 802.3z Gigabit Ethernet
Safety Class 1 Laser complies with IEC 60825-1
Regulatory UL 94V-0
Case Chrome metal
Power 3.3 VDC
Storage Temperature -40deg. to 85deg. C
Operating Temperature 0deg. to 70deg. C
Relative Humidity 5% to 95% non-condensing
Output Optical Power (POUT) Min: -9 dBm
Max: -3 dBm
Extinction Ratio (ER) Min: 9 dB
Optical Input Power (PIN) Max: -3 dBm
Sensitivity (PIN) Max: -20 dBm
Optical Return Loss (OLR) Min: 12 dB
Loss of Signal - Asserted (LOSA) Min: -35 dBm
Loss of Signal - Deasserted (LOSB) Max: -20 dBm
Dimensions (L x W x H) 2.23 x 0.54 x 0.33" / 56.64 x 13.71 x 8.38 mm
Weight 0.1 lbs / 0.04 Kg
