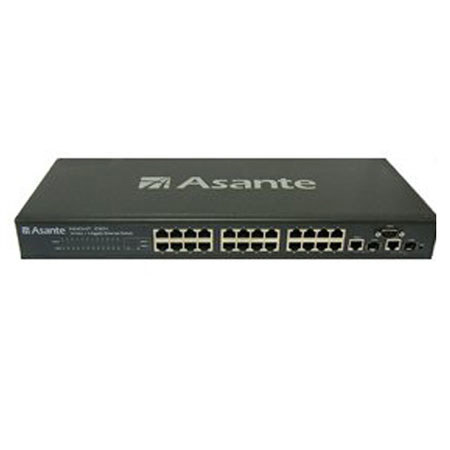

Asante IntraCore IC3624 24-Port Fast Ethernet + 2 Gigabit Combo L2+ Management Switch

SKU: AS9900826 MFR: 99-00826
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$170.49 $7 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the Asante IC3624

The Asante IntraCore IC3624 is an excellent enterprise or SME network edge aggregator switch. It is a layer 2+ manage switch with very simple and straight forward installation procedure for any end user. Just plug in the network connections (10, 100 Mbps) and network will be up and running within minutes. The IC3624 switch automatically negotiates the best speed, duplex (full or half) and wiring (Auto-Uplink) for optimal performance. All 24 ports RJ45, 2 ports Giga RJ45 and shared 2 port of fiber optics are all runtime swappable.

IC3624 fits perfectly in SME, corporate edge network, small to mid-size business workgroup network. Built around a very sophisticated single-chip architecture, the IC3624 delivers true non-blocking, wire-speed performance on all ports with transport capability to deliver in realtime deliver bulk data from multimedia, file transfer, image and video information.

The IC3624 gives you flexible choices of either copper cable or fiber cable on ports G0 to G3 to uplink to core or backbone network. Using SFP MiniGBIC modules you can connect to the network to a fiber optical network backbone, or extend the transmission distance with the use of single-mode or multi-mode Gigabit fiber cables. The L2+ management feature tap into the IC3624's on-board Command Line Interface and web configuration to enable Professional IP and regular user to maximize benefits of L2+ switch capability. With additional L2+ features with ACL on IP and MAC layer, IC3624 gives full control for LAN users to access the network and information.

Asante IC3624 Includes

  • Asante IntraCore IC3624 24-Port Fast Ethernet + 2 Gigabit Combo L2+ Switch
  • Power Cord
  • Rack-Mount Kit
  • Switch CD
  • Asante 3 Year Warranty

Asante IC3624 Specifications

Interfaces 24 RJ-45 connectors for 10/100 BASE-T
2 RJ45 Combo Ports for 1000 BASE T with 2 MiniGIBC/SFP Slots
IEEE Auto Negotiation or manual configuration
Reset button
RS232 Console port
Status Indicators Power Operating status of the unit
2 LEDs for port link/activity, speed
Performance Wire-speed, Gigabit Ethernet Switch at 6.5Mpps
Less than 20 us for 64-byte frames latency
4 Priority Queue with Weighted Round Robin (WRR) scheduling
8000 MAC address with auto-learning and aging
Single-chip switch fabric non-blocking with on-board frame buffers
Management 1 IEEE 802.1x Standard Port Access Control
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1.W Rapid Spanning Tree Protocol
IEEE 802.1 S Multiple Spanning Tree Protocol
IEEE 802.1Q Tag VLAN (Up to 64)
Port-based QoS (options High/Normal)
Port Trunking - Manual as per IEEE802.3ad Link Aggregation
Port Mirroring
System Log
RFC 1157 SNMP v1, v2c
RFC 1643 Ethernet Interface MIB
Management 2 RFC1493 Bridge MIB
Web-based (IE, Mozilla, MacOS-Safari)
Password access control
Upgradeable firmware
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x full-duplex flow control
IEEE 802.3z 1000BaseSX over 50 micron multi-mode fiber
TCP/IP, CSMA/CA with ACK
FCC Class A, CE Mark
L2+ Management Command Line Interface/Web /Telenet
GVRP VLAN Negotiation
ACL for L2,L3 and L4
SSl and SSH
TACACS+ Client Authentication
IGMP Snooping and IGMP Proxy
DHCP Client and DHCP Relay
Power Internal, auto-switching,100 - 240 VAC, 50-60 Hz
Operating Temperature 0deg.C to 40deg.C (32deg.F to 104deg.F )
Storage temperature -20deg. to 70deg. C ( -4deg. to 158deg.F )
Relative Humidity 10% to 90%, non-condensing
Storage Humidity 95% maximum, non-condensing
System Requirements Category 5, 6 Network cable
Single Mode, Multimode fiber
Window IE browser, Netscape, Mozilla, MacOS Safari
Security 802.11x RADIUS Authentication
Management Access Control List
Dimensions (W x D x H) 430 x 178 x 44mm / 16.9 x 7 x 1.7"
Weight 2.4 kg(5.3lbs)
