Asante

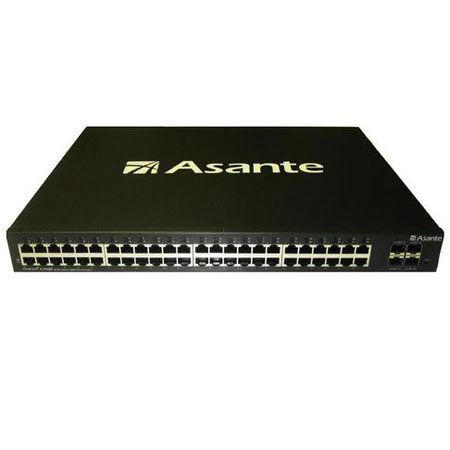

Asante IntraCore IC39480 48-Port 10/100/1000 Mbps + 4/2 Gigabit SFP L2+ Management Switch

SKU: AS9900829 MFR: 99-00829
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$699.99
Free Shipping
Qty:

Add to Wishlist

About the Asante IC39480

The Asante IntraCore IC39480 is a high density, high performance, energy saving infrastructure grade and center office network switch. It is a full-featured layer 2+ (CLI, Telnet and Web-enable GUI) management switch. The 48-port support full wire speed 10/100/1000 information transfer. The core switching engine can sustain 96 Gbps non-blocking throughput for applications including enterprise backbone, data center networking, high speed server, or network aggregation.

Asante IC39480 Includes

  • Asante IntraCore IC39480 48-Port 10/100/1000 Mbps + 4/2 Gigabit SFP L2+ Switch
  • Power Cord
  • Rack-Mount Kit
  • Switch CD
  • Asante 3 Year Warranty

Asante IC39480 Features

  • Smart power and link: It is designed to offer green technology network switching to protect the end user's long term investment from the high cost of energy
  • Smart Business/Office: It is perfectly suited for SME, corporate edge network, small to mid-size business and workgroup network
  • Smart Comprehensive Management: The L2+ management features tap into the IC39480 on-board Command Line Interface and web configuration to enable Professional IT staff and regular users to maximize the benefits of L2+ switch capability

Asante IC39480 Specifications

Interfaces 48 RJ-45 connectors for 10/100/100 BASE-T
4/2 shared SFP modules for Gigabit Ethernet Interface
IEEE Auto Negotiation or manual configuration
Reset button
RS232 Console port
Status Indicators Power Operating status of the unit
2 LEDs for port link/activity, speed
Performance Forwarding modes: Store-and-forward
Bandwidth: 96/48 Gbps(non-blocking)
System Memory: 64MBytes
8000 MAC address with auto-learning and aging
Less than 20 us for 64-byte frames latency
4 Priority Queue with Weighted Round Robin (WRR) scheduling
Jumbo frame: 9162 bytes
Single-chip switch fabric non-blocking with on-chip frame buffers
Management 1 IEEE 802.1x Standard Port Access Control
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1.W Rapid Spanning Tree Protocol
IEEE 802.1 S Multiple Spanning Tree Protocol
IEEE 802.1Q Tag VLAN (Up to 64)
Port-based QoS (options High/Normal)
Port Trunking - Manual as per IEEE802.3ad Link Aggregation
Port Mirroring
System Log
RFC 1157 SNMP v1, v2c
RFC 768 UDP
Management 2 UDP Relay
RFC 854-859 Telnet
RFC 951 BOOTP
RFC1757 RMON
RFC 1643 Ethernet Interface MIB
RFC 1493 Bridge MIB
RFC 1534 DHCP/BOOTP
RFC 2865/2866 RADIUS
Port Mirroring
RFC 2236 IGMP
RFC 3046 DHCP/BOOP relay
Tftp/FTP/HTTP firmware upgrade
Web-based (IE, Mozilla, MacOS-Safari)
Password access control
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x full-duplex flow control
IEEE 802.3z 1000BaseSX over 50 micron multi-mode fiber
TCP/IP, CSMA/CA with ACK
FCC Class A, CE Mark
L2+ Management Command Line Interface/Web /Telnet
IEEE 802.1Q VLAN
IEEE 802.1p CoS
IEEE 802.1D Spanning Tree
IEEE 802.1v VLAN
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
IEEE 802.3ad LACP
IEEE 802.1x Port Access Authentication
IGMP v1, v2 snooping support
GVRP VLAN Negotiation
ACL for L2,L3 and L4
SSl and SSH
TACACS+ Client Authentication
IGMP Snooping and IGMP Proxy
Network Standards IEEE802.3i 10Base T
IEEE802.3u 100Base TX
IEEE802.3z 1000BASE-X
IEEE802.3ab 1000BASE-T
IEEE802.3x flow control
Power Internal, auto-switching,100 - 240 VAC, 50-60 Hz
Operating Temperature 0deg.C to 40deg.C (32deg.F to 104deg.F )
Storage temperature -20deg. to 70deg. C ( -4deg. to 158deg.F )
Relative Humidity 10% to 90%, non-condensing
Storage humidity 95% maximum, non-condensing
System Requirements Category 5, 6 Network cable
Single Mode, Multimode fiber
Window IE browser, Netscape, Mozilla, MacOS Safari
Security 802.11x RADIUS Authentication
Management Access Control List
Dimensions (W x D x H) 430 x 350 x 44mm / 16.9 x 13.7 x 1.73"
Weight 4.1 kg / 9.03 lbs
