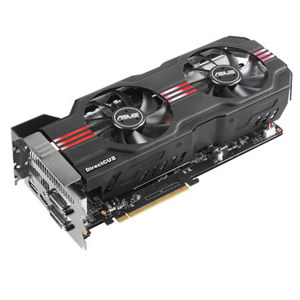

Asus GeForce GTX 680 DirectCU II 28nm Graphics Card
Asus

Asus GeForce GTX 680 DirectCU II Coolest and Quietest 28nm Graphics Card

SKU: ASGTX680DC2O MFR: GTX680-DC2O-2GD5
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$499.99
Free Shipping (USA)
Qty:

Add to Wishlist

About the Asus GTX 680

The Asus GeForce GTX 680 28 nm Graphics Card is 20% cooler and 14 dB quieter with exclusive DirectCU II thermal solution. The proprietary VGA hotwire allows you to plug and solder wires on the card's voltage regulators and accurately read and control Vcore, Vmem and PLL voltages from ASS ROG MBs on a hardware level. GPU Tweak co-developed with the most authoritative GPU-Z to provide the most accurate information. Acclaimed DIGI+ VRM with 10-phase super alloy power technology delivers precise digital power and enhanced durability for stable overlocking.

Asus GTX 680 Includes

  • Asus GeForce GTX 680 DirectCU II 28nm Graphics Card
  • Power Cable
  • Extended SLI Cable
  • Asus Warranty

Asus GTX 680 Features

  • DirectCU: If the GPU is the heart of a graphics card, then the cooling device would be its lungs. Without it, the graphics card would not be able to "breath" smoothly, causing it to break down or even cause the entire system to fail
  • Asus DirectCU technology: Thick copper heat pipes are accurately positioned in direct contact with the GPU surface so heat is transported and dissipated efficiently to the heatsink - achieving a 20% cooler performance than reference
  • Super Alloy Power: The new and exclusive Super Alloy Power technology on ASUS graphics cards uses a special alloy formula which is highly-magnetic, heat-resistant and anti-corrosive
  • 15% Performance Boost: During overclocking, the Super Hybrid Engine acts as an intelligent controller to switch between high and low intensity power profiles in real time for 15% performance boost
  • 2.5X Longer Lifespan: Super Alloy Capacitor increases the card's lifespan to 150,000 hours which is 2.5 times longer than traditional capacitors
  • 35deg.C Cooler Operations: Super Alloy components are reinforced with special alloy formula and manufactured under high temperature and pressure to deliver stable and noise-free operation
  • GPU Tweak: It not only allows you to optimize clock speeds, voltage and fan speeds on up to four graphics cards independently or simultaneously, you can also select between GPU Tweak's Standard or Advanced modes depending on your level of experience

Asus GTX 680 Specifications

Graphics Engine NVIDIA GeForce GTX 680
Bus Standard PCI Express 3.0
Video Memory GDDR5 2GB
Engine Clock GPU Boost Clock: 1084 MHz
GPU Base Clock: 1019 MHz
CUDA Core 1536
Memory Clock 6008 MHz ( GDDR5 )
Memory Interface 256-bit
Resolution DVI Max Resolution: 2560x1600
Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D)
HDMI Output: Yes x 1
Display Port: Yes x 1 (Regular DP)
Dimensions 11.8 x 5.1 x 2.3" (29.97 x 12.95 x 5.8 cm)
