Asus WL-ANT-157 5dbi/7dbi High Gain Dual-band Wireless Antenna

Asus
Closeout

Our Price

$21.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Product Highlights

  • Easy to Install (No driver required)
  • Coverage Range Extension
  • Perfect antenna solution for wireless environments
  • Windows 8.1

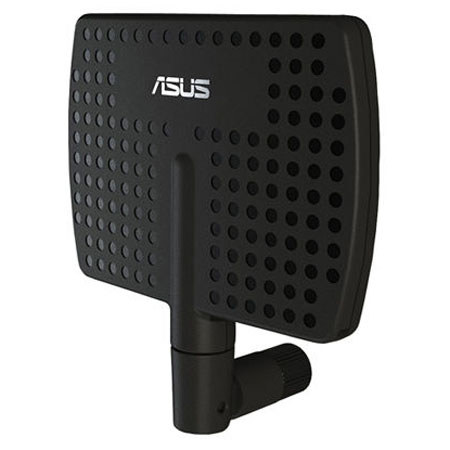

Asus WL-ANT-157: Picture 1 regular $21.99

About Asus WL-ANT-157

The Asus WL-ANT-157 5dbi & 7dbi High Gain Dual-band Wireless Antenna is a high gain, high-performance dual band antenna. This antenna can greatly increase the effective wireless operation range of 802.11a/b/g/n wireless devices.

Asus WL-ANT-157 Features

  • Asus WL-ANT157 Directional High Gain Antenna provides stronger signals for any locations
  • Easy to Install (No driver required): Simply unplug your current antenna and replace it with the WL-ANT157
  • Coverage Range Extension: The antenna is ideal for building corporate wireless infrastructures by driving stronger signals to distant corners and hard-to-reach areas
  • Compact Size: Compact in size, the WL-ANT157 is highly portable and a perfect antenna solution for different wireless environments

Asus WL-ANT-157 Specifications

Polarization
Linear, Vertical
Frequency Range
2.4MHz-5MHz
Gain
5 dBi & 7 dBi
VSWR
2.0:1 Max./2.0:1 Max.
HPBW
HPBW/Horizontal 70deg./50deg.
HPBW/Vertical 70deg./60deg.
Impedance
50Ohms
Connector
RP SMA PLUG
Temperature
-10deg.C to +55deg.C
Humidity
95% at 25deg.C
Mfr #
WL-ANT-157
SKU
ASWLANT157

Asus WL-ANT-157 Reviews

Reviewed by 2 customers


1.0

Disappointed in the antenna

By

from Fort Lauderdale, FL  -  Low bandwidth user

I too tried all 3 positions on my router and aimed the antenna both ways to make sure I wasn't beaming off the back of the antenna. I can't say it made any difference whatsoever. I got better results with stock antennas back on with tin foil curved around the antennas beaming the signal in the direction I wanted. That more than doubled the speed compared to the antenna.

(0 of 1 customers found this review helpful)


1.0

Save your Money

By

from Houston, Texas  -  Low bandwidth user

Attached it to my ASUS RT-N66U router and it made absolutely no difference in the signal strength on the lower floor room where I have only one bar. Still one bar! Tried various antenna directions and router locations. Went back to the standard antenna!

Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Michael M  Will this antenna work with a Belkin F7D7302 router?
Michael M  Thanks! Appeciate your response. That seems to be the issue with most signal boosters/repeaters. M
Michael M  Will this antenna work with a Belkin F7D7302 router?
Michael M  Thanks! Appeciate your response. That seems to be the issue with most signal boosters/repeaters. M
Michael M  Will this antenna work with a Belkin F7D7302 router?
Michael M  Thanks! Appeciate your response. That seems to be the issue with most signal boosters/repeaters. M
