Audio-Technica

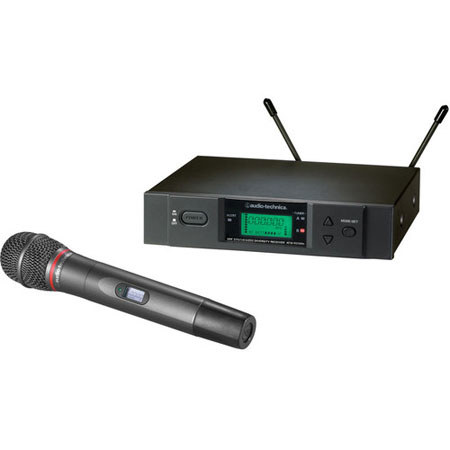

Audio-Technica ATW-3141B Wireless Handheld System, Includes ATW-R3100B Receiver & ATW-T341B Handheld Transmitter, Band C 541.500-566.375 MHz

SKU: ATATW3141BC MFR: ATW-3141BC
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$799.00 List Price

Our Price

$499.00 $20 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About the Audio-Technica ATW-3141B

The Audio-Technica ATW-3141B Wireless Handheld System (Band C 541.500-566.375 MHz) is a frequency agile, true-diversity handheld wireless microphone system.

The ATW-R3100B Receiver features Automatic Frequency Scanning, which selects the best available frequency. The True Diversity feature means that the ATW-R3100B has two independent receiver sections and automatically sends the strongest signal of the two to the output at any given moment.

The rear panel reveals both unbalanced 1/4" TS and balanced XLR outputs. A comprehensive back-lit LCD display reveals channel and frequency settings, signal status and transmitter battery status. The receiver also offers a ground lift switch, convenient in situations where bad power feeds result in ground hum and noise on the output stage.

The ATW-T341B Handheld Transmitter is equipped with an AE4100 cardioid dynamic element. The cardioid polar pattern effectively minimizes noise and feedback at the off-axis sections. The mic has a dual output section that lets you select high or low power, depending on your needs. The low power setting uses up the mic's two AA batteries more slowly. The mic can get up to 8 hours of life in that setting. On the high power setting, you get up to 6 hours of operation before needing to change batteries.

Audio-Technica ATW-3141B Includes

  • Audio-Technica ATW-R3100B Receiver
  • ATW-T341B Handheld Transmitter
  • 2x UHF Receiver Antenna
  • AC Adapter
  • 2x Rack-Mount Adapters
  • AT8456a Quiet-Flex Stand Clamp
  • Audio-Technica 2 Years Limited Warranty

Audio-Technica ATW-3141B Features

  • Receiver: Automatic frequency scanning
  • Receiver: High sensitivity dual IF receiving design for dropout-free performance
  • Receiver: Three compatible frequency bands with 996 - 1001 selectable UHF frequencies per band
  • Receiver: 25 kHz frequency spacing makes it easier to find a clear, open frequency in crowded RF environments
  • Receiver: Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
  • Receiver: Receiver internal function menu with soft-touch controls
  • Receiver: Transmitter battery-life fuel gauge on the front panel
  • Receiver: True diversity receiver with silent, automatic switching
  • Receiver: Rear-panel antenna mount options
  • Receiver: Antenna power available for powered antennas & other in-line RF devices
  • Receiver: Balanced and unbalanced outputs
  • Receiver: Output level control on the rear panel
  • Receiver: Digital Tone Lock squelch
  • Receiver: Adjustable receiver squelch
  • Receiver: Operator alert indicators
  • Transmitter: Artist Elite AE4100 cardioid dynamic capsule with integral shock mount
  • Transmitter: Dual output power selection to optimize battery life
  • Transmitter: Battery fuel gauge on the body of the microphone
  • Transmitter: Dual-color power/mute status indictor
  • Transmitter: Two-stage pop filter to protect against "p" pops
  • Transmitter: Function menu displayed in a backlit LCD window and controlled by internal touch switches
  • Transmitter: Digital Tone Lock to identify the wireless transmitter to the receiver
  • Transmitter: Durable Metal housing
  • Transmitter: Power/mute lock provision

Audio-Technica ATW-3141B Specifications

Type of Receiver True diversity
Receiver: Image Rejection 60 dB nominal, 55 dB minimum
Receiver: RF Sensitivity 20 dBuV at 60 dB S/N ratio
Receiver: Maximum Output Level XLR, balanced: +9 dBV; ¼" (6.3 mm), unbalanced: +7 dBV
Receiver: Antenna Input BNC-type, 50 ohms
Bias voltage 12V DC, 60 mA, each
Receiver: Power Requirements 12-18V DC, 500 mA
Receiver: Display Back-Lit LCD Display & Battery / Signal Status LED
Transmitter: RF Power Output High: 30 mW; Low: 10 mW, (switchable), at 50 ohms
Type of Microphone Dynamic
Microphone: Polar Pattern Cardioid
Transmitter: Batteries Two 1.5V AA, not included
Transmitter: Battery Life High: 6 hours (alkaline)
Low: 8 hours (alkaline)
Transmitter: Mute Switch Power / Mute switch dual function
Transmitter: Display Back-Lit LCD Display & Battery / Signal Status LED
Operating Frequency Band C: 541.500 MHz to 566.375 MHz
Minimum Frequency Step 25 kHz
Modulation Mode FM
Maximum Deviation ±35 kHz
Dynamic Range > 110 dB (A-weighted), typical
Total Harmonic Distortion < 1% (at 1 kHz, ±17.5 kHz deviation)
Operating Range 100 m (300'), typical
Operating Temperature Range -5deg. C to +45deg. C (23deg. F to 113deg. F)
Frequency Response 70 Hz to 15 kHz (+1 dB, -3 dB)
Dimensions Receiver: 8.27x1.73x6.47" / 210.0x43.94x164.33mm (WxHxD)
Transmitter: 9.33x1.89" / 237x48mm (LxDia.)
Weight Receiver: 2.4lbs / 1.1kg
Transmitter: 10oz / 283.5g, without batteries
