Audio-Technica ATW-49CB Wide-Band Antenna Combiner Kit for 4000/5000 Series UHF Wireless System

SKU: ATATW49CB MFR: ATW-49CB
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$338.00 List Price

Our Price

$185.02 $8 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About the Audio-Technica ATW-49CB

The Audio-Technica ATW-49CB Wide-Band Antenna Combiner Kit is designed to enhance signal reception for Audio-Technica 4000 and 5000 series wireless UHF microphone receivers or antenna distribution systems. The Antenna Combiner Kit includes two active antenna combiners with two antenna inputs and one output. Also included are two BNC-to-BNC antenna cables measuring 18-inches in length.

Two wide-band UHF antennas such as the ATW-A49 LPDA "paddle" antennas can be connected to a single combiner. With two antenna combiners included in this kit, four wide-band antennas may be connected to a single receiver or distribution system. Wide-band operation enables a broad RF operating range between 440 to 900 MHz, making the kit an ideal tool for most UHF wireless microphone systems. The active combiners are capable of sending power to active antennas, boosters, etc.

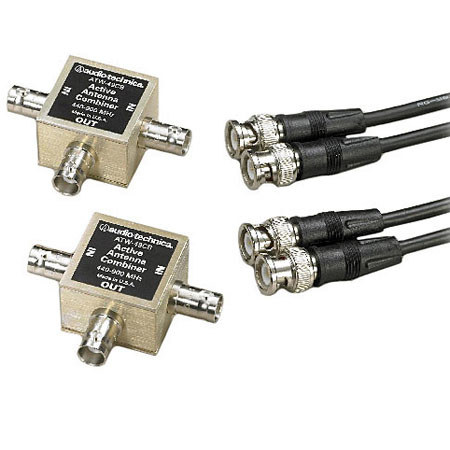

Audio-Technica ATW-49CB Includes

  • Audio-Technica 2 x Dual Input, Single Output BNC Antenna Combiners
  • BNC-to-BNC Antenna Cable (18")
  • Audio-Technica 2 Years Limited Warranty

Audio-Technica ATW-49CB Features

  • One set of Active Antenna Combiners enables two sets of antennas to feed one wireless receiver or distribution system
  • Each Active Antenna Combiner is a broadband device (frequency range from 440 to 900 MHz) that combines two incoming RF signals into one outgoing RF signal
  • Designed for use with Audio-Technica 4000 and 5000 Series UHF wireless receivers and ATW-A49 LPDA antennas
  • The Active Antenna Combiner provides unity gain to compensate for RF signal loss associated with combining signals
  • Also suitable for use with a variety of other receivers and antennas

Audio-Technica ATW-49CB Specifications

Compatibility Audio-Technica 4000/5000 Series UHF Wireless System
Bandwidth 440MHz to 900MHz
Gain 0dB Typical
Impedance 50 ohms, Typical (within specified bandwidth)
Termination 3-BNC Female
Power 5-14VDC
30mA at 12VDC
Dimensions 2.38x0.92x1.83" (60.45x23.36x46.48mm)
Weight 1.80oz (51.02g)
