Audio-Technica

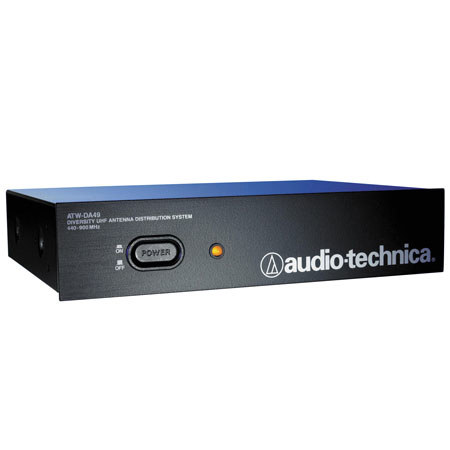

Audio-Technica ATW-DA49 UHF Antenna Distribution System for 2000 and 3000 Series Wireless Systems, 400 - 900 MHz RF Frequency Range

SKU: ATATWDA49 MFR: ATW-DA49
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$559.00 List Price

Our Price

$399.00
Free Overnight Shipping
Qty:
Add to Wishlist In Stock

Protect your investment

About the Audio-Technica ATW-DA49

The Audio-Technica ATW-DA49 UHF Antenna Distribution System is a UHF (wide-band 440-900 MHz) active unity-gain diversity antenna distribution system that enables one pair of antennas to feed multiple wireless systems. Provides two "1-in, 4-out" RF channels; connects a pair of antennas to as many as four wireless receivers. Either passive or active antennas may be used. Both input jacks offer switchable +12V DC output on their center pins to operate Audio-Technica powered antennas or other in-line RF devices if desired. The unit features all-metal construction for extreme durability and protection from radio frequency interference.

The ATW-DA49 is designed to complement Audio-Technica 2000 and 3000 Series wireless systems. It is also suitable for many other wireless systems operating within the 440-900 MHz range.

Audio-Technica ATW-DA49 Includes

  • Audio-Technica ATW-DA49 UHF Antenna Distribution System
  • 10 x RF Cables
  • Front-mount Antenna Cables and Connectors
  • 4 x DC Power Cables
  • +12V DC Desktop Power Supply with Detachable IEC Power Cable
  • ATW-RM1 Rack-Mount Hardware Kit for Front Mounting Antennas and Adaptation to 19" Rack
  • Audio-Technica 2 Year Limited Warranty

Audio-Technica ATW-DA49 Features

  • Four Channels: The ATW-DA49 provides antenna RF distribution to up to four 2000 and 3000 series receivers
  • Wide Band Operation: The ATW-DA49 operates on a wide band between 400 - 900MHz
  • Power Distribution: Four 12VDC outputs provide power to up to four external receivers

Audio-Technica ATW-DA49 Specifications

Compatibility Audio-Technica 2000 and 3000 Series Wireless Systems
No of Channels 4
RF Input BNC Female x2
RF Output BNC Female x4
RF Frequency Range 400 - 900 MHz
Attenuation / Gain 0dB typical (within specified bandwidth)
Operating Voltage +12V DC
Dimensions (WxHxD) 8.27x1.79x6.93" (210x45.5x176.0mm)
Weight 2.0 lbs (0.9kg)
