Atomos

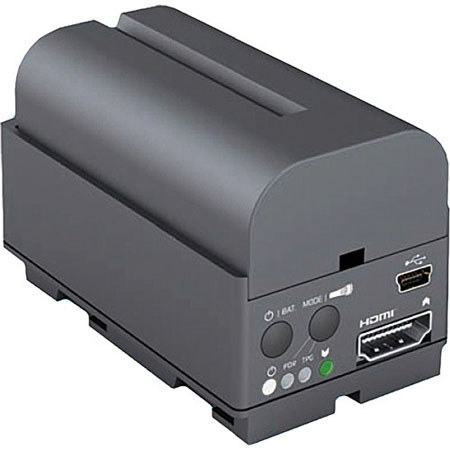

Atomos Connect S2H SDI to HDMI Converter

SKU: ATCCS2H MFR: ATOMS2H002
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$295.00 $12 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the Atomos SDI to HDMI Converter

The Atomos Connect SDI to HDMI Converter is a convenient way to convert an SD, HD, or 3G-SDI signal - depending on the transfer rate of your SDI device - to an HDMI signal for the purpose of running the SDI signal on an HDMI device (such as in, for example, connecting an SDI-equipped camera to the Converter by SDI and outputting the signal to a top-resolution large screen local HDMI display).

Aside from the handy form factor, what's additionally very much convenient is that the Converter is battery-powered. It features an internal battery that provides 2 hours of power and accepts separately-sold NP series batteries that can last up to 32 hours, so depending on the battery size; you can power the Converter continually into the next day if you want. And if you have a second battery as well, then you can replace one for the other and the internal battery will kick in during the swap and thus you can keep the converter working day after day without pause. (You can also employ AC power if you have an NP-style device that functions as an AC adapter.)

As another point of convenience, multiple Converters are stackable one atop another and can even be housed in a 1RU rack. HDMI to SDI Converters are alternatively also available and can be stacked together with SDI to HDMI ones as if they were the same. When stacked, multiple units can be powered by the same battery, by the one on the uppermost Converter in the stack. The Converter has one SDI input and likewise one HDMI output.

Atomos SDI to HDMI Converter Includes

  • AC Power Supply for Charging Battery
  • Atomos 1 Year Warranty

Atomos SDI to HDMI Converter Features

  • Equipped with 2-hour internal battery (in the least for fail-safe purposes)
  • Accepts NP batteries (for up to 32 hours) / stackable / and rack-mountable
  • Features a broadcast-quality Test Pattern Generator for equipment verification
  • Performs 3:2 Pulldown Removal: extracts 24p/30p from 60i; and 25p from 50i or PSF equivalents

Atomos SDI to HDMI Converter Specifications

Inputs 1x 3G/HD/SD-SDI (supports embedded audio only)
Outputs 1x HDMI (supports embedded audio only)
Firmware Updates Via USB port
Supported Formats 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080p30 (60i), 1080p25 (50i), 1080p24 (60i), 1080p23.98 (60i), 720p60, 720p59.94, 720p50, 480i, 576i
Processing Pulldown Removal:
25PsF (50i) to 25p
30PsF (60i) to 30p
24p (as 3:2-60i) to 24p
Pulldown Insertion:
25p to 25PsF (50i)
30p to 30PsF (60i)
24p to 24p (as 3:2-60i)
Battery Life Internal battery: up to 2 hours
Optional 7.4V 2600mAh: up to 12 hours
7.4V 5200mAh: up to 22 hours
7.4V 7800mAh: up to 32 hours
Dimensions 1.67x1.14x2.95" / 4.24x2.89x7.49cm
