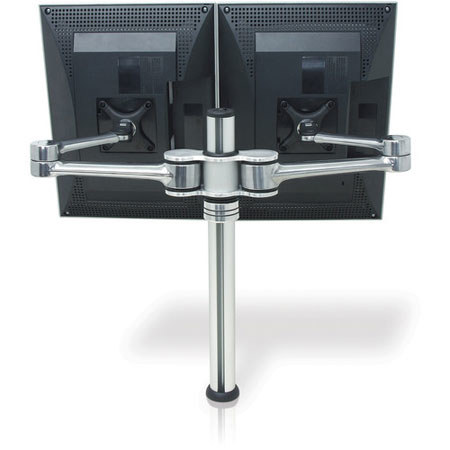

Atdec Visidec VF-AT-D Dual Articulating Arm, 17.5lbs Load Capacity
What's Included With This Item:
- Atdec Visidec VF-AT-D Dual Articulating Arm
- Desk Clamp & Bolt Through
- Mounting Hardware
- Atdec 10 Years Limited Warranty
The Atdec Visidec VF-AT-D Dual Articulating Arm is designed for users who require dual monitor applications. This desk mount supports two LCD flat screens of up to 17.5 lbs each and frees up valuable desk space for enhanced productivity. Holding the 2 displays side by side or back to back, viewing comfort is dramatically increased through easy repositioning of the screens. The tilt, pan, rotation, height and distance from the screens are all at the user's control.
|Mounting Hole||3.0 x 3.0" (75 x 75mm)
4.0 x 4.0" (100 x 100mm)
|Depth From Mounting Source||Maximum 18.25" (464mm)|
|Mounting Options||Bolt Through: Suits desktop thicknesses of 12mm - 40mm (0.5"-1.5")
Desk Clamp: Suits desktop thicknesses of 12mm - 38mm (0.5"-1.5")
|Screen Rotation||Portrait/landscape is 95deg.|
|Rotation||Around pole is 360deg.
240deg. rotation at shoulder
|Pan/Tilt Adjustment||Pan is 180deg.
Tilt is +/-70deg.
|Display Tilt Adjustment||70deg. up and 70deg. down from the vertical plane|
|Display Pan Adjustment||90deg. left and right, total of 180deg.|
|Load Capacity||17.5lbs / 8kg|
|Dimensions (HxD)||17.6x1.5" / 44.7x3.81cm|
