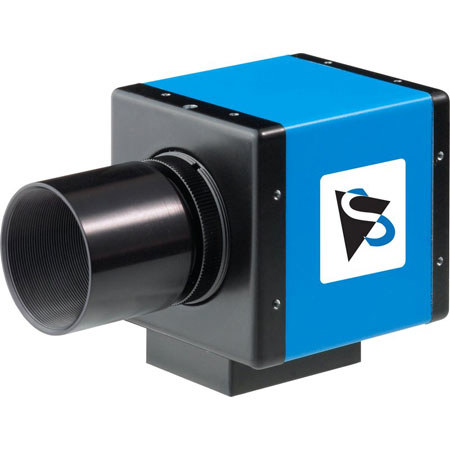

Imaging Source DFK 21AU618.AS Color USB Astronomy Camera with IR Cut Filter, 640x480 Pixel Resolution, C/CS Mount

See all Imaging Source items
SKU: ATDFK21A618 MFR: DFK 21AU618.AS
Made in USA

Our Price

$450.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Imaging Source DFK 21AU618.AS

The Imaging Source DFK 21AU618.AS Color USB Astronomy Camera is ideally suited to color astrophotography, in which very fast image sequences should be captured. The camera ships with IC Capture.AS, a comprehensive software package with which you can capture lossless and uncompressed images sequences and write them to disk as AVI files, or as a series of singular bitmaps.

The DFK 21AU618.AS ships with the color Sony ICX618AQA progressive scan CCD chip. With its 1/4" format, the CCD chip produces a resolution of 640 x 480 pixels. Even at very long exposure times - up to 60 minutes exposure are possible - noise is minimal. Thanks to this extremely high quality, the Sony ICX618AQA CCD chip is also often used in other scientific, industrial and medical image processing applications.

Imaging Source DFK 21AU618.AS Features

  • Color Interpolation: For visualization applications, it does not make sense to view the RAW image stream from the CCD chip. It must be interpolated, before it may be viewed or saved in common formats. IC Capture.AS perform color interpolation, thus reducing the load on the DFK 21AU618.AS's processor
  • IR Cut Filter As Standard: Unlike the human eye, CCD chips are sensitive to near infrared light (wavelengths over 700 nm). The DFK 21AU618.AS ships with an IR cut filter as standard and is thus suited to applications in which these wavelengths would lead to interference or undesirable results
  • High Speed Data Transfer Via USB: In order to transfer the vast amount of data created by the stream of uncompressed and lossless color images to the host PC, you need a very high speed bus. Hence, the DFK 21AU618.AS is fitted with a fast USB connector

Imaging Source DFK 21AU618.AS Specifications

Video formats @ FPS
640 x 480, BY8 (RAW) at 60, 30, 15, 7.5, 3.75 FPS
640 x 480, UYVY at 30, 15, 7.5, 3.75 FPS
Dynamic range
8 bit
IR cut filter
Yes
Optical Interface Type
Progressive scan
Format
1/4 "
Resolution
H: 640 pixel, V: 480 pixel
Lens mount
C/CS mount
Connector type
USB
Supply voltage
4.5 VDC to 5.5 VDC (via USB cable)
Current consumption
Approx. 500 mA at 5 VDC
Shutter (exposure time)
1/10,000 second to 60 minutes
Gain
0 dB to 36 dB
Max. temperature (operation)
-5 deg.C to 45 deg.C
Max. temperature (storage)
-20 deg.C to 60 deg.C
Max. humidity (operation)
20 % to 80 % non-condensing
Max. humidity (storage)
20 % to 95 % non-condensing
Dimensions (H x W x L)
50.6mm x 50.6mm x 50mm (1.99" x1.99" x 1.96")
Weight
265g (9.34 oz)
Mfr #
DFK 21AU618.AS
SKU
ATDFK21A618
