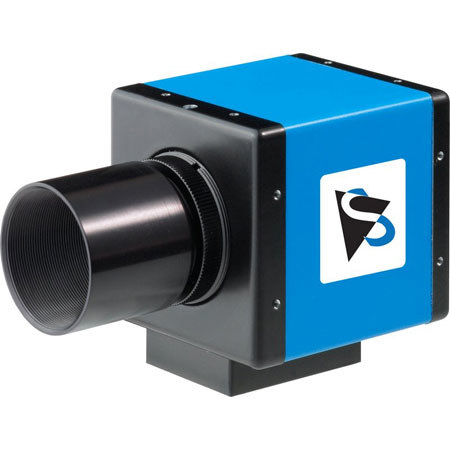

Imaging Source DFK 41AU02.AS Color USB Astronomy Camera with IR Cut Filter, 1280x960 Pixel Resolution, C/CS Mount

See all Imaging Source items
SKU: ATDFK41AU02 MFR: DFK 41AU02.AS
Made in USA

Our Price

$570.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Imaging Source DFK 41AU02.AS: Picture 1 regular $570.00

About Imaging Source DFK 41AU02.AS

The Imaging Source DFK 41AU02.AS is ideally suited to capture highly detailed images of the night sky. The camera comes with IC Capture.AS, a comprehensive software package with which you can capture lossless and uncompressed images sequences and write them to disk as AVI files, or as a series of singular bitmaps.

The DFK 41AU02.AS ships with the color Sony ICX205AK progressive scan CCD chip. With its 1/2 " format, the CCD chip produces a resolution of 1280 x 960 pixels. Even at very long exposure times - up to 60 minutes exposure are possible - noise is minimal. Thanks to this extremely high quality, the Sony ICX205AK CCD chip is also often used in other scientific, industrial and medical image processing applications.

Imaging Source DFK 41AU02.AS Features

  • Color Interpolation: For visualization applications, it does not make sense to view the RAW image stream from the CCD chip. It must be interpolated, before it may be viewed or saved in common formats. IC Capture.AS perform color interpolation, thus reducing the load on the DFK 41AU02.AS's processor
  • IR Cut Filter As Standard: Unlike the human eye, CCD chips are sensitive to near infrared light (wavelengths over 700 nm). The DFK 41AU02.AS ships with an IR cut filter as standard and is thus suited to applications in which these wavelengths would lead to interference or undesirable results
  • High Speed Data Transfer Via USB: In order to transfer the vast amount of data created by the stream of uncompressed and lossless color images to the host PC, you need a very high speed bus. Hence, the DFK 41AU02.AS is fitted with a fast USB connector

Imaging Source DFK 41AU02.AS Specifications

Video formats @ FPS
1280 x 960, BY8 (RAW) at 15, 7.5, 3.75 FPS
1280 x 960, UYVY at 7.5, 3.75 FPS
Dynamic range
8 bit
IR cut filter
Yes
Optical Interface Type
Progressive scan
Format
1/2"
Resolution
H: 1280 pixel, V: 960 pixel
Lens mount
C/CS mount
Connector type
USB
Supply voltage
4.5 VDC to 5.5 VDC (via USB cable)
Current consumption
Approx. 500 mA at 5 VDC
Shutter (exposure time)
1/10,000 second to 60 minutes
Gain
0 dB to 36 dB
Max. temperature (operation)
-5 deg.C to 45 deg.C
Max. temperature (storage)
-20 deg.C to 60 deg.C
Max. humidity (operation)
20 % to 80 % non-condensing
Max. humidity (storage)
20 % to 95 % non-condensing
Dimensions (H x W x L)
50.6mm x 50.6mm x 50mm (1.99" x1.99" x 1.96")
Weight
265g (9.34 oz)
Mfr #
DFK 41AU02.AS
SKU
ATDFK41AU02
