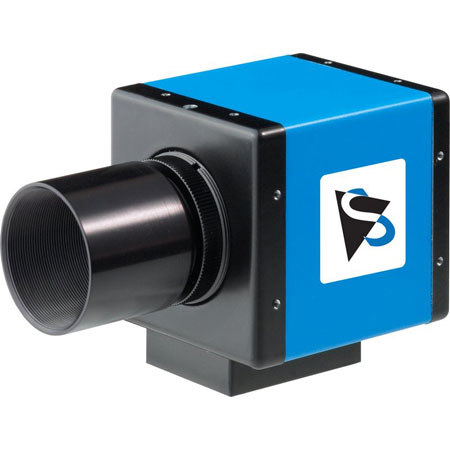

Imaging Source DMK 21AU04.AS Monochrome USB Astronomy Camera without IR Cut Filter, 640x480 Pixel Resolution, C/CS Mount

See all Imaging Source items
SKU: ATDMK21AU04 MFR: DMK 21AU04.AS
Made in USA

Our Price

$390.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Imaging Source DMK 21AU04.AS

The Imaging Source DMK 21AU04.AS Monochrome USB Astronomy Camera is ideally suited to black and white astrophotography, in which very fast image sequences should be captured. The camera ships with IC Capture.AS, a comprehensive software package with which you can capture lossless and uncompressed images sequences and write them to disk as AVI files, or as a series of singular bitmaps.

The DMK 21AU04.AS ships with the monochrome Sony ICX098BL progressive scan CCD chip. With its 1/4" format, the CCD chip produces a resolution of 640 x 480 pixels. Even at very long exposure times - up to 60 minutes exposure are possible - noise is minimal. Thanks to this extremely high quality, the Sony ICX098BL CCD chip is also often used in other scientific, industrial and medical image processing applications.

Imaging Source DMK 21AU04.AS Features

  • No Compression, No IR Cut Filter: The DMK 21AU04.AS does not compress the video stream it outputs - the video data that is captured by the CCD chip is outputted directly by the USB connector. Similarly, the camera does not have an IR cut filter, a color filter, nor an other kind of electronic filter
  • High Speed Data Transfer Via USB: In order to transfer the vast amount of data created by the stream of uncompressed and lossless monochrome images to the host PC, you need a very high speed bus. Hence, the DMK 21AU04.AS is fitted with a fast USB connector

Imaging Source DMK 21AU04.AS Specifications

Video formats @ FPS
640 x 480, Y800 at 60, 30, 15, 7.5, 3.75 FPS
Dynamic range
8 bit
IR cut filter
No
Optical Interface Type
Progressive scan
Format
1/4 "
Resolution
H: 640 pixel, V: 480 pixel
Lens mount
C/CS mount
Connector type
USB
Supply voltage
4.5 VDC to 5.5 VDC (via USB cable)
Current consumption
Approx. 500 mA at 5 VDC
Shutter (exposure time)
1/10,000 second to 60 minutes
Gain
0 dB to 36 dB
Max. temperature (operation)
-5 deg.C to 45 deg.C
Max. temperature (storage)
-20 deg.C to 60 deg.C
Max. humidity (operation)
20 % to 80 % non-condensing
Max. humidity (storage)
20 % to 95 % non-condensing
Dimensions (H x W x L)
50.6mm x 50.6mm x 50mm (1.99" x 1.99" x 1.96")
Weight
265 g (9.3 oz)
