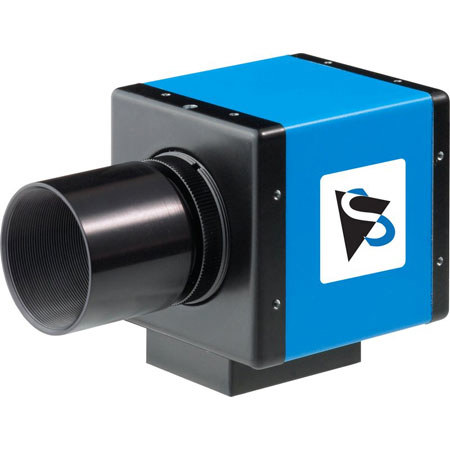

Imaging Source DMK 31AU03.AS Monochrome USB Astronomy Camera without IR Cut Filter, 1024x768 Pixel Resolution, C/CS Mount

SKU: ATDMK31AU03 MFR: DMK 31AU03.AS
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$630.00 $25 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the Imaging Source DMK 31AU03.AS

The Imaging Source DMK 31AU03.AS Monochrome USB Astronomy ships with IC Capture.AS, a comprehensive software package with which you can capture lossless and uncompressed images sequences and write them to disk as AVI files, or as a series of singular bitmaps.

The DMK 31AU03.AS ships with the monochrome Sony ICX204AL progressive scan CCD chip. With its 1/3" format, the CCD chip produces a resolution of 1024 x 768 pixels. Even at very long exposure times - up to 60 minutes exposure are possible - noise is minimal. Thanks to this extremely high quality, the Sony ICX204AL CCD chip is also often used in other scientific, industrial and medical image processing applications.

Imaging Source DMK 31AU03.AS Includes

  • The Imaging Source DMK 31AU03.AS Monochrome USB Astronomy Camera
  • Software Bundle
  • The Imaging Source Warranty

Imaging Source DMK 31AU03.AS Features

  • No Compression, No IR Cut Filter: The DMK 31AU03.AS does not compress the video stream it outputs - the video data that is captured by the CCD chip is outputted directly by the USB connector. Similarly, the camera does not have an IR cut filter, a color filter, nor an other kind of electronic filter
  • High Speed Data Transfer Via USB: In order to transfer the vast amount of data created by the stream of uncompressed and lossless monochrome images to the host PC, you need a very high speed bus. Hence, the DMK 31AU03.AS is fitted with a fast USB connector

Imaging Source DMK 31AU03.AS Specifications

Video formats @ FPS 1024 x 768, Y800 at 30, 15, 7.5, 3.75 FPS
Dynamic range 8 bit
IR cut filter No
Optical Interface Type Progressive scan
Format 1/3 "
Resolution H: 1024 pixel, V: 768 pixel
Lens mount C/CS mount
Connector type USB
Supply voltage 4.5 VDC to 5.5 VDC (via USB cable)
Current consumption Approx. 500 mA at 5 VDC
Shutter (exposure time) 1/10,000 second to 60 minutes
Gain 0 dB to 36 dB
Max. temperature (operation) -5 deg.C to 45 deg.C
Max. temperature (storage) -20 deg.C to 60 deg.C
Max. humidity (operation) 20 % to 80 % non-condensing
Max. humidity (storage) 20 % to 95 % non-condensing
Dimensions (H x W x L) 50.6mm x 50.6mm x 50mm (1.99" x 1.99" x 1.96")
Weight 265 g (9.3 oz)
