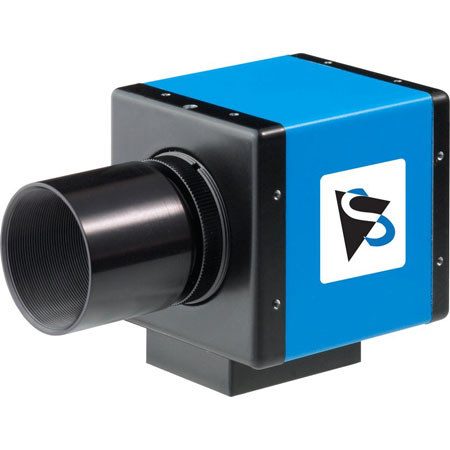

Imaging Source DMK 41AU02.AS Monochrome USB Astronomy Camera without IR Cut Filter, 1280x960 Pixel Resolution, C/CS Mount

SKU: ATDMK41AU02 MFR: DMK 41AU02.AS
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$630.00 $25 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the Imaging Source DMK 41AU02.AS

The Imaging Source DMK 41AU02.AS Monochrome USB Astronomy Camera is ideally suited to capture highly detailed images of the night sky. The camera ships with IC Capture.AS, a comprehensive software package with which you can capture lossless and uncompressed images sequences and write them to disk as AVI files, or as a series of singular bitmaps.

The DMK 41AU02.AS ships with the monochrome Sony ICX205AL progressive scan CCD chip. With its 1/2" format, the CCD chip produces a resolution of 1280 x 960 pixels. Even at very long exposure times - up to 60 minutes exposure are possible - noise is minimal. Thanks to this extremely high quality, the Sony ICX205AL CCD chip is also often used in other scientific, industrial and medical image processing applications.

Imaging Source DMK 41AU02.AS Includes

  • The Imaging Source DMK 41AU02.AS Monochrome USB Astronomy Camera
  • Software Bundle
  • The Imaging Source Warranty

Imaging Source DMK 41AU02.AS Features

  • No Compression, No IR Cut Filter: The DMK 41AU02.AS does not compress the video stream it outputs - the video data that is captured by the CCD chip is outputted directly by the USB connector. Similarly, the camera does not have an IR cut filter, a color filter, nor an other kind of electronic filter
  • High Speed Data Transfer Via USB: In order to transfer the vast amount of data created by the stream of uncompressed and lossless monochrome images to the host PC, you need a very high speed bus. Hence, the DMK 41AU02.AS is fitted with a fast USB connector

Imaging Source DMK 41AU02.AS Specifications

Video formats @ FPS 1280 x 960, Y800 at 15, 7.5, 3.75 FPS
Dynamic range 8 bit
IR cut filter No
Optical Interface Type Progressive scan
Format 1/2"
Resolution H: 1280 pixel, V: 960 pixel
Lens mount C/CS mount
Connector type USB
Supply voltage 4.5 VDC to 5.5 VDC (via USB cable)
Current consumption Approx. 500 mA at 5 VDC
Shutter (exposure time) 1/10,000 second to 60 minutes
Gain 0 dB to 36 dB
Max. temperature (operation) -5 deg.C to 45 deg.C
Max. temperature (storage) -20 deg.C to 60 deg.C
Max. humidity (operation) 20 % to 80 % non-condensing
Max. humidity (storage) 20 % to 95 % non-condensing
Dimensions (H x W x L) 50.6mm x 50.6mm x 50mm (1.99" x 1.99" x 1.96")
Weight 265 g (9.34 oz)
