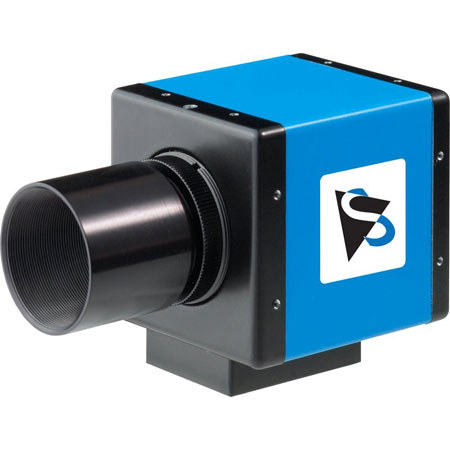

Imaging Source DMK 51AU02.AS Monochrome USB Astronomy Camera without IR Cut Filter, 1600x1200 Pixel Resolution, C/CS Mount

See all Imaging Source items

About Imaging Source DMK 51AU02.AS

The Imaging Source DMK 51AU02.AS Monochrome USB Astronomy Camera is ideally suited to capture detailed images of the night sky, which demand the finest precision. The camera ships with IC Capture.AS, a comprehensive software package with which you can capture lossless and uncompressed images sequences and write them to disk as AVI files, or as a series of singular bitmaps.

The DMK 51AU02.AS ships with the monochrome Sony ICX274AL progressive scan CCD chip. With its 1/1.8" format, the CCD chip produces a resolution of 1600 x 1200 pixels. Even at very long exposure times - up to 60 minutes exposure are possible - noise is minimal. Thanks to this extremely high quality, the Sony ICX274AL CCD chip is also often used in other scientific, industrial and medical image processing applications.

Imaging Source DMK 51AU02.AS Features

  • No Compression, No IR Cut Filter: The DMK 51AU02.AS does not compress the video stream it outputs - the video data that is captured by the CCD chip is outputted directly by the USB connector. Similarly, the camera does not have an IR cut filter, a color filter, nor an other kind of electronic filter
  • High Speed Data Transfer Via USB: In order to transfer the vast amount of data created by the stream of uncompressed and lossless monochrome images to the host PC, you need a very high speed bus. Hence, the DMK 51AU02.AS is fitted with a fast USB connector

Imaging Source DMK 51AU02.AS Specifications

Video formats @ FPS
1600 x 1200, Y800 at 12, 7.5, 3.75 FPS
Dynamic range
8 bit
IR cut filter
Optical Interface Type
Progressive scan
H: 1600 pixel, V: 1200 pixel
Lens mount
C/CS mount
Connector type
Supply voltage
4.5 VDC to 5.5 VDC (via USB cable)
Current consumption
Approx. 500 mA at 5 VDC
Shutter (exposure time)
1/10,000 second to 60 minutes
0 dB to 36 dB
Max. temperature (operation)
-5 deg.C to 45 deg.C
Max. temperature (storage)
-20 deg.C to 60 deg.C
Max. humidity (operation)
20 % to 80 % non-condensing
Max. humidity (storage)
20 % to 95 % non-condensing
Dimensions (H x W x L)
50.6mm x 50.6mm x 50mm (1.99" x 1.99" x 1.96")
265 g (9.34 oz)

Imaging Source DMK 51AU02.AS Reviews

Reviewed by 1 customers




from Streetsboro, Ohio  -  Avid Adventurer

Awesome pictures so far of the Sun and Moon using Lunt LS60THA ans Stellarvue 105mm APO scopes with this new DMK51 Monochrome camera.


Questions & Answers Powered by TurnTo®

Questions about this item:

Tommy T  whats the mm power on this unit?
ANN D  I'm not I understand what the question is about. I don't know what "mm power" means. If that could be explained, hen maybe I could answer the question.
