Atlona 1080p DVI Extender over Single Cat5
Atlona Technologies

Atlona 1080p DVI Extender over Single Cat5, 1080p Upto 130' and 1080i/720p Upto 200'

SKU: ATDVI40SRS MFR: AT-DVI40SRS
What's Included
What's Included With This Item:
  • Atlona AT-DVI40SRS ( Sender and Receiver Units )
  • 5V Power Supply
  • Users Manual
  • Atlona 3 Years Parts and Labor Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$295.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Atlona AT-DVI40SRS DVI Extender, with capability to extend DVI signal over a single Cat5/Cat6 cable, handles resolutions up to 1600x1200 at up to 130' (40m) and 1280x1024 at up to 200' (61m). It uses a Cat-5/5e/6 cable to transmit digital video of PC to the remote monitor/projector. The unit meets DVI 1.1 compliant standard.

With integrated EDID (extended display identification data), the PC will continue sending digital signals even if the monitor is disconnected. You can then reconnect the monitor in a remote location without rebooting the operating system. The DVI Extender features 8-level equalization rotary control and allows the receiver unit to learn EDID information for DVI/HDMI supported devices.

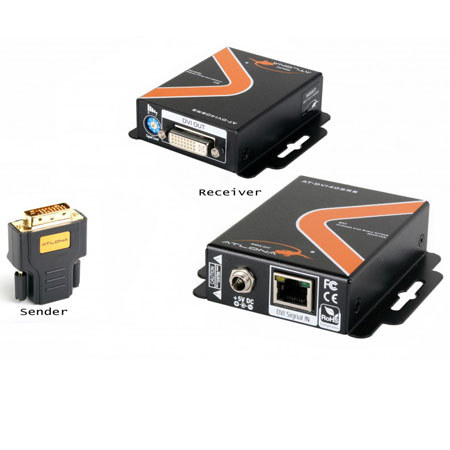

The AT-DVI40SRS DVI Extender comes with a transmitter and a receiver unit. Additionally, the receiver is attached to the monitor, while the transmitter to the PC DVI output. The successful connection is indicated by blinking of 2 LED lights on the RJ45 connector.

What's Included With This Item

  • Atlona AT-DVI40SRS ( Sender and Receiver Units )
  • 5V Power Supply
  • Users Manual
  • Atlona 3 Years Parts and Labor Warranty

Key Features

  • Perfect video quality 1080p or 1600x1200 up to 130ft and 1080i or 1280x1024 up to 200ft
  • Supports CAT-5/CAT-5E/CAT-6 cables of variable types
  • Supports high definition resolutions up to 1080P or 1600x1200
  • Receiving unit can learn EDID information for DVI/HDMI enable display device
  • Minimize the cable skew by adjustable equalization with 8 levels
  • Easy to install and simple to operate

Technical Specs

Video Bandwidth 1.65Gbps
Resolutions 1080p or 1600x1200 (up to 130') and 1080i/720p or 1280x1024 (up to 200')
Input Signal Input TMDS signal: 1.2 volts (peak-to-peak)
Input DDC signal: 5 volts (peak-to-peak)
Connector DVI Connector: DVI-D (Digital Only)
RJ-45 Connector: 2 indication LEDs
Power Supply 5V 2A
Power Consumption 10 Watts (max)
Dimensions 2.8 x 2.4 x 1" (70 x 60 x 25 mm)
Weight 0.3lb (136g) each unit
