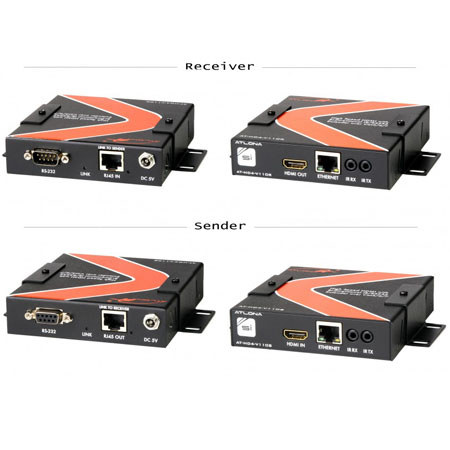

Atlona HDMI Extender Kit
Atlona Technologies

Atlona HDMI Extender Kit, Bi-Directional IR Over Single CAT5/6/7 with 3D Support

SKU: ATHD4V110SR MFR: AT-HD4-V110SR
What's Included
What's Included With This Item:
  • Atlona AT-HD4-V110SR (Transmitter/Receiver)
  • 2 x 5V/4A DC (Universal 110/220V) Locking Type
  • Set of Rack Mount Brackets
  • 2 x Emitter Sensor
  • 2 x Receiver Sensor
  • Instruction Manual
  • Atlona 3 Years Parts & Labor Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$524.99
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Atlona AT-HD4-V110SR is an HDMI over single Cat 5/6/7 extender kit designed on HDBaseT technology which allows full 3D support with up to 330ft at 4Kx2K (4 times the 1080p) resolution. It supports Bi-Directional RS-232, Bi-Directional IR, Bi Directional Ethernet, DTS HD Master Audio and Dolby True HD pass-through. The Atlona AT-HD4-V110SR is a perfect solution for extending any HDMI source such as a Blu-Ray, PS3, Apple TV, Video Codec, Matrix Switcher, or any other from a remote location to your display.

What's Included With This Item

  • Atlona AT-HD4-V110SR (Transmitter/Receiver)
  • 2 x 5V/4A DC (Universal 110/220V) Locking Type
  • Set of Rack Mount Brackets
  • 2 x Emitter Sensor
  • 2 x Receiver Sensor
  • Instruction Manual
  • Atlona 3 Years Parts & Labor Warranty

Key Features

  • Transmits HDMI (Digital Video and Audio), RS232 and Bi-Directional IR up to 330ft (100m)
  • Supports full uncompressed HD video
  • Supports high resolution video HD: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p (24/30/50/60Hz), 2k (2048x1080p) and 4kx2K (4096x2160p) - 4 times higher than 1080p
  • Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200, 2048x1080p, 4096x2160p - 4 times higher than 1080p
  • Full HD and 3D support - all 7 3D formats
  • Fully EDID Compliant
  • Fully HDCP Compliant
  • Supports all VESA formats which is perfect when used with specialized projectors or commercial LCD panels
  • Enables 10.2Gbps of HDMI (including HDCP) over 330ft Cat5/6/7 cable
  • Highest Audio Formats: Dolby TrueHD & DTS Master Audio 7.1
  • Supports Refresh Rates: 24Hz, 30Hz, 50, 60Hz
  • Supports bi-directional IR transmission, perfect for Control4, RTI, HAI users as this ability allows sending IR to the remote locations from the control systems and from the remote locations to the control systems
  • Supports RS-232 pass-though, perfect for integrating a 3rd party control system
  • Supports transmission distances up to 330ft @ at full resolution
  • Locking Power Supplies
  • Easy to install, simple to operate and the most effective solution for long signal extension
  • Ideal for whole house A/V, video broadcasting, remote monitoring, presentations and educational facilities

Technical Specs

Transmitter Inputs HDMI (Type A), IR (1/8-inch), RS232 (DB9), Ethernet (RJ45)
Transmitter Outputs Link to Receiver (RJ45), Ethernet (RJ45)
Receiver Inputs Link to Transmitter (RJ45), Ethernet (RJ45)
Receiver Outputs HDMI (Type A), IR (1/8-inch), RS232 (DB9), Ethernet (RJ45)
HDCP/EDID Compliant Yes
Supports high resolution video HD 480i, 576i, 480p, 576p, 720p, 1080i, 1080p (24/30/50/60Hz), 2k (2048x1080p), 4kx2k 4096x2160p
Supports high resolution video VESA 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200, 2048x1080p and 4096x2160p - 4 times higher than 1080p
Distance High Resolution & Full Color Depth: 330ft / 100.5 m
Deep Color 48bit up to 330ft (100m)
Power Consumption (max.) 2.5W (transmitter) and 5.5W (receiver)
Video Bandwidth Up to 10Gbps
Input TMDS signal 1.2 volts (peak-to-peak)
Input DDS signal 5 volts (peak-to-peak)
DVI Connector 24+1 pin female (Digital Signal Only)
Power Supply 5V/4A (110/240 universal) - Locking Type
Operating Temperature Range -5 to +35 Deg.C (-41 to +95 Deg.F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Dimensions (L x W x H) 4.17" x 4.06" x 0.99" / 10.5 x 10.3 x 2.51 cm
Weight 1.5 lbs / 0.68 kg (transmitter + receiver)
