Atlona HDMI Extender Over Single Cat5/6 with LAN Loop-Out
Atlona Technologies

Atlona HDMI Extender Over Single Cat5/6 with LAN Loop-Out

SKU: ATHD50RSL MFR: AT-HD50RSL
What's Included
What's Included With This Item:
  • Atlona HDMI Extender Over Single Cat5/6 with LAN Loop-Out
  • 5V Power Adapter
  • User Manual
  • Atlona 3 Years Parts & Labor Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$209.99
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

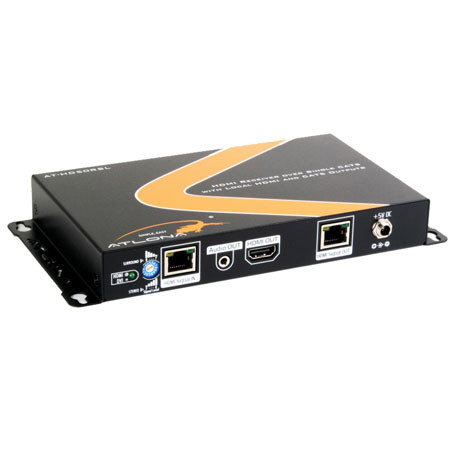

The Atlona HDMI Extender over Single Cat5/6 with LAN Loop-Out is a receiver unit that receives high definition video and high-quality audio to different locations at a distance up to 200' (160 m) when used with compatible transmitter. With full 3D support, the extender offers resolutions up to 480i / 480p / 720p / 1080i / 1080p60. The HDCP and EDID compliant extender supports a video bandwidth up to 4.95 Gbps while ensuring loss-free transmission.

Adjustable 8-level equalization control reduces the cable skew and the embedded silicon image chip-set further increases compatibility and reliability.

What's Included With This Item

  • Atlona HDMI Extender Over Single Cat5/6 with LAN Loop-Out
  • 5V Power Adapter
  • User Manual
  • Atlona 3 Years Parts & Labor Warranty

Key Features

  • Receives high definition video and high-quality audio to different locations at a distance up to 200' (160 m)
  • Extends up to 130' (40 m) (1080p) of output CAT5/6 cable
  • Offers full 3D support
  • Supports analog and digital audio
  • Supports resolutions up to 480i / 480p / 720p / 1080i / 1080p60
  • Supports default HDMI EDID and has the ability to learn the EDID of displays
  • HDCP and EDID compliant
  • Supports video bandwidth up to 4.95 Gbps while ensuring loss-free transmission
  • Adjustable 8-level equalization control minimizes cable skew
  • Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission
  • Regenerates the HDMI signal, so there is no signal loss
  • Allows cascading
  • Compatible with different transmitter options - AT-HD50SS and AT-HD19SS

Technical Specs

Video Bandwidth 165 MHz / 4.95 Gbps
Resolution 480i / 480p / 720p / 1080i / 1080p60
Transmission 130' (40 m) (1080p) of output CAT5e/6 cable
200' (60 m) 1080i/720p
Audio Support Surround sound (up to 7.1ch) or stereo digital audio
Input DDC Signal 5 Volts
Input LAN
Output HDMI, Audio Female (for DVI Applications) and LAN (loop-out)
HDMI Connector 19-pin
DIP Switch EDID selection and Learning functions
Power Supply 5V universal 110/220
Dimensions 7x4.3x1.1" (177.8x109.2x27.9 mm)
Weight 1 lbs (0.45 kg)
