Atlona Technologies

Atlona AT-HD570 HDMI Audio De-Embedder with 3D Support

SKU: ATHD570 MFR: AT-HD570
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$279.99
Free Shipping
Qty:

Add to Wishlist

About the Atlona Technologies AT-HD570

The Atlona HDMI (1.3) Audio De-Embedder with 3D Support is designed to de-embed audio from HDMI 1.3 or lower signals for transfer to either optical or multi-channel analog audio outputs. Supporting uncompressed analog LPCM 7.1 and 5.1/ 2ch through multi-channel analog outputs and Dolby Digital, LPCM 2CH and DTS via the optical link, it offers Dolby True HD and DTS HD master audio pass through HDMI connection.

With support for high resolution up to 1080p, the HDMI (1.3) Audio De-Embedder is compatible with digital video formats in deep color mode from 25 MHz to 6.75 GHz for 36 bits. While video signals are bypassed without scaling, the audio de-embedder offers amplification and equalization with reclocking function, which enables it to act as a booster and repeater. In addition, it is 3D capable for processing of 3D video formats.

Atlona Technologies AT-HD570 Includes

  • Atlona AT-HD570 HDMI Audio De-Embedder

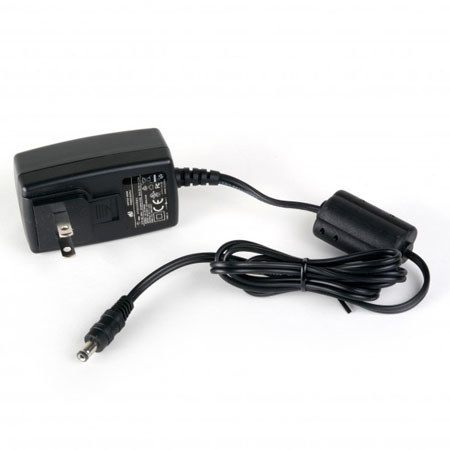

  • 5V DC Power Supply Adaptor
  • 3.5mm to L/R Female RCA Adaptor
  • Operation Manual
  • Atlona 3 Year Parts & Labor Warranty

Atlona Technologies AT-HD570 Features

  • De-embeds audio from HDMI 1.3 or lower signals for transfer to either optical or multi-channel analog audio outputs
  • Supports uncompressed analog LPCM 7.1 and 5.1/ 2ch through multi-channel analog outputs and Dolby Digital, LPCM 2CH and DTS via the optical link
  • Dolby True HD and DTS HD master audio pass through HDMI connection
  • High resolution support up to 1080p
  • Digital video formats in deep color mode from 25 MHz to 6.75 GHz for 36 bits
  • Video signals bypassed without scaling
  • Amplification and equalization with reclocking function - enables it to act as a booster and repeater
  • 3D capable
  • HDCP compliant
  • Support CEC bypass

Atlona Technologies AT-HD570 Specifications

HDMI input/output audio format LPCM 7.1, 5.1 or 2 channels and Bit stream (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
Optical Output audio format Dolby 5.1/2 and LPCM 2 channels
Multi-Channel audio format LPCM 7.1/5.1/2 channels
Operating Temperature 0Deg. C - 40Deg. C
Power Supply 5V/2.6A DC (110/220v)
Input port HDMI Female (type A)
Output port HDMI Female (Type A); Optical (TosLink); 4 x 3.5mm Outs for Multi-Channel Audio (use 3.5mm to dual RCA adapters)
Dimensions (W x D x H) 3.9 x 5.8 x 0.98" (99.06 x 147.32 x 24.9 mm)
Weight 0.8 lb (362.9 g)
