Atlona Technologies 10-Input Switcher/Scan Converter with Single HDMI (1.3) Output, 3D Support

Atlona Technologies
Atlona Technologies : Picture 1 thumbnail Atlona Technologies : Picture 2 thumbnail

Regular Price: $402.99

18% Off

Special Price

$329.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Atlona Technologies

For limited time only, save 18.11% on the Atlona 10-Input Switcher/Scan Converter dropping from 402.99 to 329.99 and Shipping is free! . Bonus: No sales tax either, unless you live in New York or New Jersey.

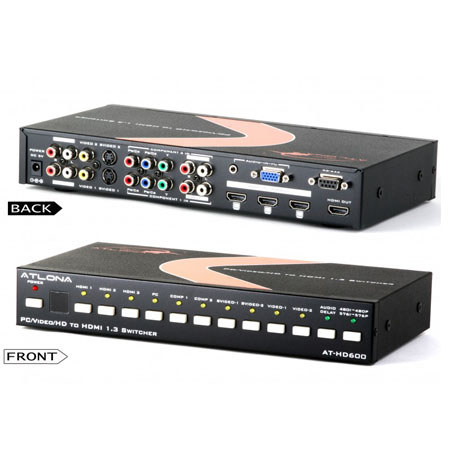

The Atlona 10-Input Switcher/Scan Converter with Single HDMI (1.3) Output accepts inputs from composite, S-video, component video, VGA and HDMI sources and converts them to provide a single HDMI output with resolutions up to 1080p. With a bandwidth of 2.25 Gbps per channel, the switcher supports HDMI v1.3 specification and deep color video up to 36 bit. In addition, the switcher is capable of switching 3D format video signals. It transfers audio signals via embedding with the video signal and with audio delay up to 150 ms avoids lagging of audio with respect to the corresponding video signal.

Supporting input resolutions up to SXGA @ 75 Hz and 1080p, the 10-Input Switcher / Scan Converter features a 3D noise reduction, which eliminates artifacts and noise for efficient conversion. A 3D comb filter enhances image quality via 3 consecutive horizontal scan lines. It is compatible with PAL, SECAM and NTSC (3.58/4.43) formats and supports format conversion from 480i/576i to 480p/576p.

Being HDCP compliant, the Switcher / Scan Converter allows a jitter-free connection with the connected devices. You can control the switcher via an IR remote, RS232, or through manual button selection on the front panel.

Atlona Technologies Features

  • Designed to accept inputs from composite (2), S-video (2), component video (2), VGA (1) and HDMI (3) sources
  • Provides a single HDMI output with resolutions up to 1080p
  • Bandwidth - 2.25 Gbps per channel
  • Supports HDMI v1.3 specification
  • Deep color video up to 36 bit
  • Capable of switching 3D format video signals
  • Transfers audio signals via embedding with the video signal
  • Audio delay up to 150 ms avoids lagging of audio with respect to the corresponding video signal
  • Input resolutions up to SXGA @ 75 Hz and 1080p
  • 3D noise reduction, which eliminates artifacts and noise for efficient conversion
  • 3D comb filter enhances image quality via 3 consecutive horizontal scan lines
  • Compatible with PAL, SECAM and NTSC (3.58/4.43) formats
  • Supports format conversion from 480i/576i to 480p/576p
  • HDCP compliant - jitter-free connection with the connected devices
  • Control via an IR remote, RS232, or through manual button selection on the front panel
  • Comes with Rack Mounts

Atlona Technologies Specifications

Frequency Bandwidth
2.25 Gbps per channel (6.75 Gbps)
Input
2 x composite, 2 x S-video, 2 x component video, 1 x VGA and 3 x HDMI
Output
1 x HDMI
Control
RS232, IR or manual
Hard Disk Space
5 V DC / 2.6 A (US / EU standards, CE / FCC / UL certified)
Dimensions (W x D x H)
11 x 5.7 x 1.7" (27.9 x 14.5 x 4.3 cm)
Weight
3 lb (1.3 kg)
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Dan R  When switching from one input to another, is it a fast "cut" or a "desolve?"
Andrew R  An abrupt switch between sources would be a cut, a gradual fade from one source to another would be a dissolve.
Dan R  Andrew - Thanks for the reply, but I didn't ask the question properly to get the answer I wanted. I already knew what cuts and dissolves are - What I'd really like to know is which of those transition methods this switcher uses. I'm sorry I didn't state the question clearly the first time.
