Atlona Technologies

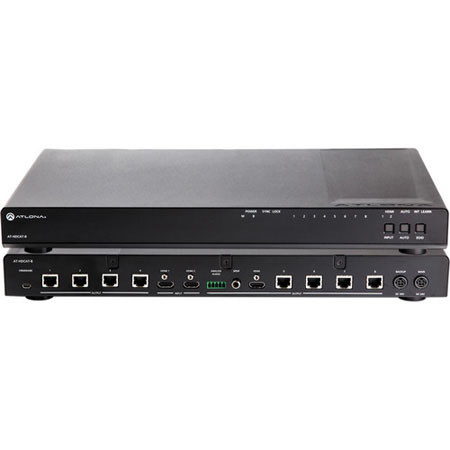

Atlona Technologies HDBaseT HDMI 2 By 8 Distribution Amplifier Over a Single Category Cable, 6.75Gbps Bandwidth

SKU: ATHDCAT8 MFR: AT-HDCAT-8
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,999.99
Free Shipping
Qty:

Add to Wishlist

About this item

The Atlona HDBaseT-Lite HDMI 2 x 8 Distribution Amplifier enables you to send 1 source to multiple displays up to 230' (70.1 m) away. With built-in audio loop outs to ensure all audio and video needs are met in-zone and locally. This distribution amplifier distributes audio from 2 channels to uncompressed multi-channels and video up to 1080p or 1920x1200.

What's Included With This Item

  • Atlona HDBaseT-Lite HDMI 2 x 8 Distribution Amplifier
  • 24V/6.25A DC Power Supply
  • Captive Screw Connector (5 pin: Audio)
  • Pair of Wall/Rack Mount Ears
  • User Manual
  • Atlona 10 Years Limited Warranty

Key Features

  • Powerful Smart Auto-Switching: The HDCAT's smart switching capability eliminates the need to manually change inputs. Simply power on/off a source device and the matrix conveniently switches automatically
  • Go Further with More: Extend your audio/visual experience up to 230ft. HDBaseT-Lite technology allows you to send power, video (up to 1080p or 1920x1200) and audio (all Lossy and Lossless formats) signals over a single category cable
  • Power of One for All: Leave behind the power cable on your receiver. With the latest feature of Power over Category cable (PoCc) the HDCAT transmits power to all the connected receivers over category cable
  • Never too Many Displays: With a built in local HDMI loop out, send your source to multiple HDCATs. Use one source signal for as many as 8 daisy chains
  • Redundant power supply (optional)
  • EDID learning mode to ensure compatibility
  • Built in S/PDIF and Analog audio loop outs
  • Supports pass through of all 3D formats
  • Pass through support of all Lossy and Lossless audio (up to Dolby TrueHD or DTS-HD Master Audio)
  • Locking HDMI port
  • Field serviceable firmware port
  • For added reliability use AT-PW24V6.25A Optional Redundant Power Supply

Technical Specs

Bandwidth 6.75Gbps
Video input 2 x HDMI
Video output 8 x RJ45, 1 x HDMI
S/PDIF Audio 1 x RCA
Analog audio 1 x captive screw
Firmware update 1 x USB
Power Consumption 93W
Audio Passes up to Dolby TrueHD or DTS-HD Master Audio
Distance 230 ft (70 m) at 1080p over Cat6a/7
197 ft (60 m) at 1080p over Cat5e/6
Resolution Video: up to 1080p at 60Hz
VESA: up to 1920x1200
Rack Size 1 U, 19" standard electronics rack
Operating Temperature 32deg.F to 104deg.F (0deg.C to 40deg.C)
Storage Temperature -4deg.F to 140deg.F (-20deg.C to 60deg.C)
Certifications CE, FCC, RoHS, UL, cULus for power supplies
Dimensions (H x W x D) 1.7 x 17.24 x 10.3" / 4.31 x 43.78 x 26.16cm
Weight 6.38 lbs (2.9 kg)
