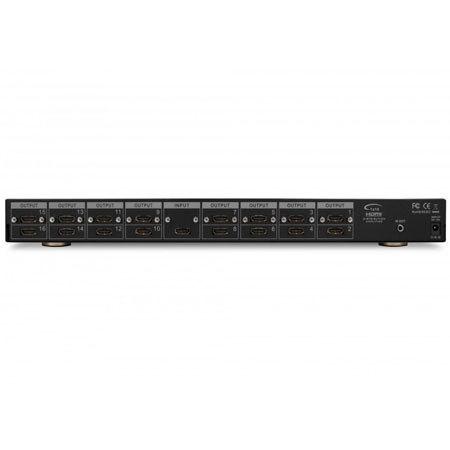

Atlona Technologies 1x16 HDMI Distribution Amplifier with 3D Support

Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About this item

The Atlona Technologies is a 1x16 HDMI Distribution Amplifier designed to work as a splitter for any high definition video application. With 1 HDMI input and 16 HDMI outputs, the AT-HD-V116 is capable of splitting high definition signal from one source to sixteen separate displays with compatible inputs. With a built in amplifier, this unit has the ability to boost this signal great distance, while preventing both signal loss and picture degradation. This splitter supports data rates up to 6.75 Gbps and enables HDMI formats at resolutions up to 1080p or 1920x1200 and WUXGA DVI resolution at (1920x1200). With HDCP Compatibility, 1x16 HDMI Distribution, amplifier is perfect for all applications sending high definition video signal to multiple displays.

What's Included With This Item

  • Atlona Technologies 1x16 HDMI Distribution Amplifier
  • Instruction Manual
  • IR Remote Control
  • Universal AC/DC Power Adapter 12VDC
  • 19" Ear Mount Pair
  • IR Extender Receiver
  • Atlona Technologies 10 Years Parts & Labor Warranty

Key Features

  • 3D Capable
  • HDCP compliant
  • Deep color video up to 12bit, 1080p at (24/60)Hz 1920x1200
  • HDCP keyset allows each output to work independently when connecting to a HDMI display
  • Splits a HDMI source up to sixteen outputs simultaneously, without signal loss
  • Supports DVI source and DVI display by using HDMI to/from DVI adapter cable
  • Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate)
  • Supports High Definition audio-Dolby Digital TrueHD and DTS-HD
  • Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480i to 1080p
  • 50/60Hz compatible for worldwide users
  • HDMI cable distance test with 1080p resolution, the Input/Output source can run up to 15m (50ft) without degradation
  • Supports EDID functionality. The unit will detect the first HDMI/DVI output source's EDID and record it in the unit

Technical Specs

1x16 HDMI Distributor 1 x HDMI Input to16x HDMI Outputs
Video Support HDMI formats up to 1080p or1920x1200 and DVI up to WUXGA 1920x1200 HD resolutions.
Audio Support DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus
Compliant standard HDMI, DVI and HDCP.
HDTV Support HDMI formats up to 1080p or 1920x1200 and WUXGA 1920x1200 resolution.
Controls Manual or IR Remote and IR Extender (Maximum Distance 300M)
Data Rates 6.75 Gbps.
Pixel clocks 25MHz to 225 Mhz.
HDMI Cable Distance 45ft at 6.75Gbps.
Digital Video Standards RGB/YCBCR: 24/30/36-bits; YCBCR:8/10/12/16/20/24-bits; Double data rate interface for RGB/YCBCR: 12/15/18-bits
Rack Mountable 1U
Max. Resolution HDTV: 1080p
PC or Mac: 1920x1200
Chassis Material Metal
Input port 1x HDMI female port (Type A connector)
Output ports 16 x HDMI female ports
Infrared frequency 38KHz.
Safety Approvals CE, FCC, RoHS.
Power Supply 12V DC
Operating Temperature 0deg.C - 48deg.C
Dimensions (W x D x H) 17.34 x 8.5 x 1.9" / 44.04 x 21.59 x 4.83cm
Weight 9lbs / 4.08kg
