Atlona Technologies

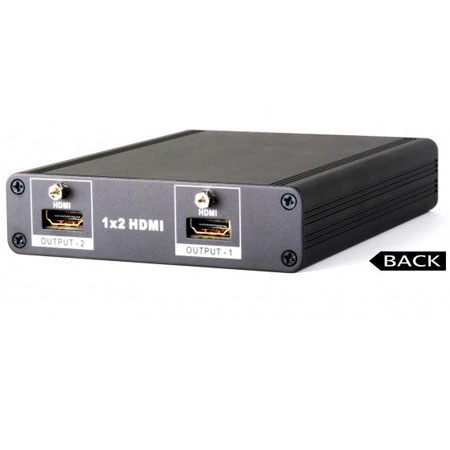

Atlona 1x2 HDMI Distribution Amplifier (HDMI 1.3) with 3D Support, Black

SKU: ATHDV12 MFR: AT-HD-V12
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$249.99 List Price

Our Price

$185.06
Free Shipping
Qty:

Add to Wishlist In Stock

About this item

The Atlona AT-HD-V12 HDMI Distribution Amplifier (HDMI 1.3) with 3D Support (1x2) is a professional 1 input and 2 output splitter for duplicating a HDMI signal across 2 outputs. Supporting Deep color video up to 12bit, it allows transmission of video resolutions of up to WUXGA or 1080p at (24 / 50 / 60 Hz). Using an HDMI cable, the distribution amplifier can transmit 1080p signals up to 50' (15 m) without loss of signal strength. It also supports a DVI source and display when used with a HDMI to / from DVI adapter cable.

Offering support for Dolby Digital, DTS digital audio transmission with 32-192 kHz Fs sample rates, the HDMI Distribution Amplifier (V1.3) supports high definition audio-Dolby Digital TrueHD and DTS-HD audio formats. Utilizing a HDCP key set, it enables independent control over both outputs when connected to an HDMI display. Featuring EDID functionality, the distribution amplifier avoids compatibility issues with connected displays. In addition, it is compliant with HDMI 1.3, HDCP1.1 and DVI 1.0 standards and also supports 3D video content.

What's Included With This Item

  • Atlona 1 x 2 HDMI Distribution Amplifier (HDMI 1.3)
  • 12V Universal Power Supply
  • User's Manual
  • Atlona 3 Years Parts & Labor Warranty

Key Features

  • 3D Capable
  • HDMI 1.3, HDCP1.1 and DVI1.0 compliant
  • Deep color video up to 12bit, 1080p at (24/50/60)Hz 1920 x 1200
  • HDCP keyset allows each output to work independently when connecting to a HDMI display
  • Splits a HDMI source up to two outputs simultaneously, without signal loss
  • Supports DVI source and DVI display by using HDMI to/from DVI adapter cable
  • Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate)
  • Supports High Definition audio-Dolby Digital TrueHD and DTS-HD
  • Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480i to 1080p
  • HDMI cable distance test with 1080p resolution, the Input/Output source can run up to 15m (50ft) without degradation
  • Supports EDID functionality. The unit will detect the first HDMI/DVI output source's EDID and record it in the unit

Technical Specs

Frequency bandwidth 6.75 GHz
Max. Resolution HDTV 1080p
Max. Resolution PC 1920 x 1200
Input port 1x HDMI female port (Type A connector)
Output ports 2 x HDMI female ports
Power Supply 12V (US/EU standards, CE/FCC/UL certified)
Operating Temperature 32 to 118.4 Deg. F (0 to 48 Deg. C)
Chassis Metal construction
Dimensions (W x D x H) 5.4 x 3.5 x 0.75" (137.2 x 89 x 19 mm)
Weight 2 lbs (0.9 kg)
